Victron Energy BMV-712 Black Battery Monitor w/Bluetooth
Victron Energy BMV-712 Black Battery Monitor w/Bluetooth
Accurate Battery Monitoring at Your Fingertips
Empower yourself with unparalleled accuracy in tracking your battery's capacity using the Victron Energy BMV-712. This advanced battery monitor surpasses conventional measures, delving into detailed factors such as ampere-hours consumed, discharge current, temperature, and battery age. Its sophisticated software algorithms offer comprehensive insights beyond voltage and current, providing precise data on ampere-hours consumed, state of charge, time-to-go, and power consumption in Watts. Additionally, the BMV-712 features an extra input to monitor a second battery's voltage, temperature, or midpoint voltage.
Effortless Installation

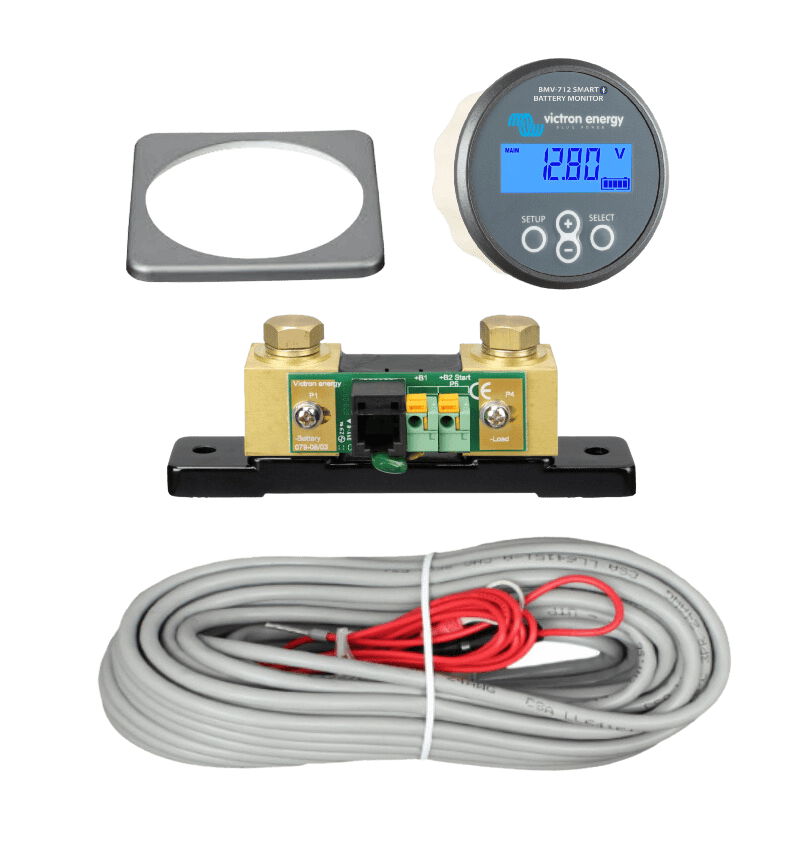

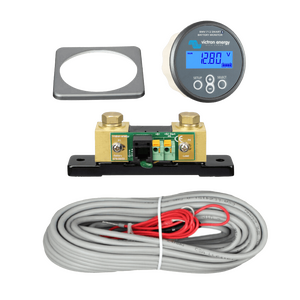

Simplify your setup with the BMV-712's straightforward installation process. All electrical connections link to the quick connect PCB on the current shunt, seamlessly connecting to the monitor using a standard RJ12 telephone cable. The package includes a 10m RJ12 cable and a 2m battery cable with fuse – no additional components required! With a separate front bezel for square or round displays, a rear mounting securing ring, and mounting screws included, you have everything needed for a hassle-free installation.
Smartphone Programming for Added Convenience

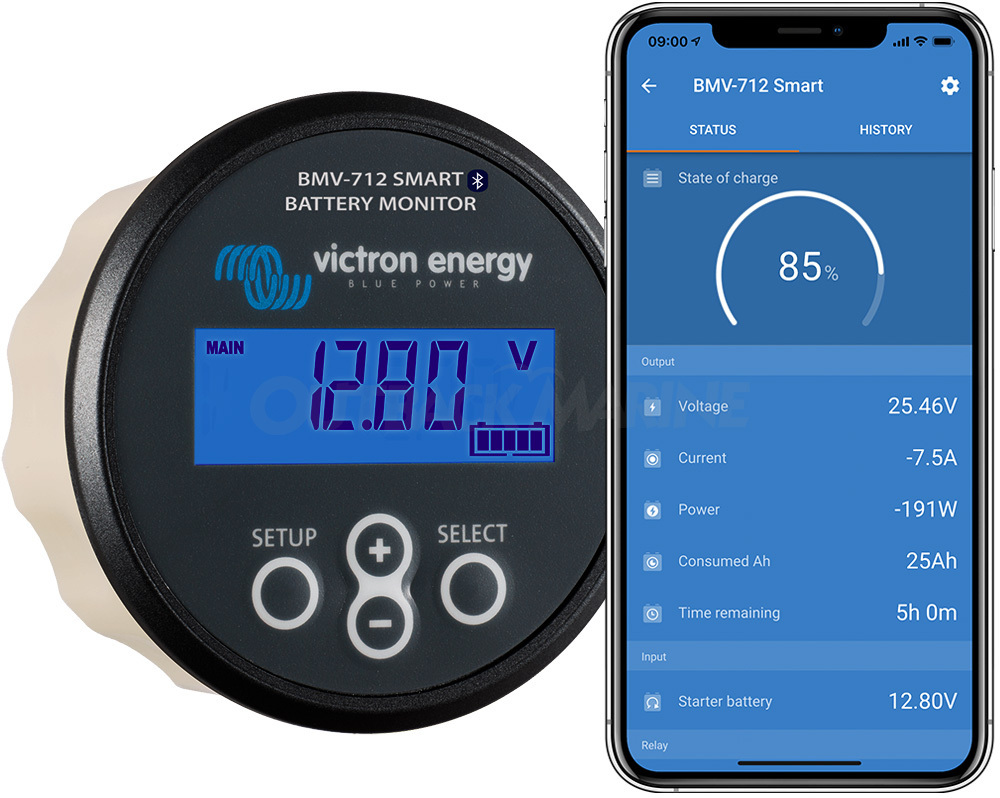

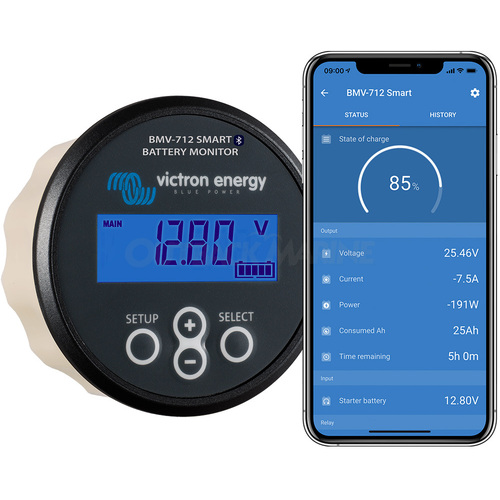

Setting up the BMV-712 is a breeze with its quick install menu and detailed setup menu featuring scrolling texts. For added convenience, download our smartphone app to effortlessly manage settings from your mobile device.
Exclusive Midpoint Voltage Monitoring
Once reserved for large industrial battery banks, midpoint voltage monitoring is now accessible and affordable with the BMV-712. This critical feature alerts you to any deviations, potentially safeguarding your valuable battery from severe damage. Refer to the BMV manual for comprehensive information on this exclusive capability.
Key Features of the BMV-712 Battery Monitor:
- Real-time data on battery voltage, current, power, ampere-hours consumed, and state of charge
- Displays remaining time at the current rate of discharge
- Programmable visual and audible alarm
- Programmable relay for managing non-critical loads or running a generator when needed
- 500 Amp quick connect shunt with connection kit and shunt selection up to 10,000 Amps
- VE.Direct communication port for seamless connectivity
- Records a wide range of historical events to assess usage patterns and battery health
- Wide input voltage range: 6.5 – 95V
- High current measurement resolution: 10 mA (0.01A)
- Low current consumption: 2.9Ah per month (4mA) at 12V and 2.2Ah per month (3mA) at 24V
Elevate your battery monitoring experience with the BMV-712 – precision meets simplicity, providing you with the insights and control you need for optimal battery performance.
.png)
| SKU | 8719076049524 |
| Barcode # | 8719076049524 |
| Brand | Victron Energy |
| Shipping Weight | 1.0500kg |
| Shipping Width | 0.230m |
| Shipping Height | 0.280m |
| Shipping Length | 0.080m |
| Shipping Cubic | 0.005152000m3 |
| Unit Of Measure | ea |
