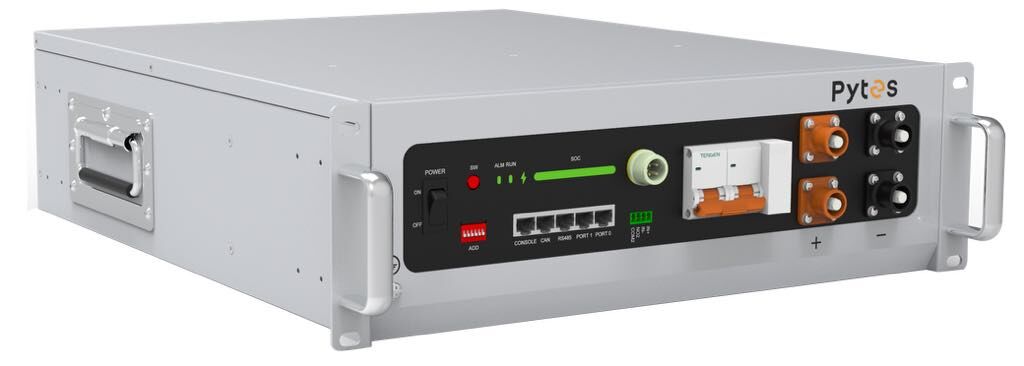

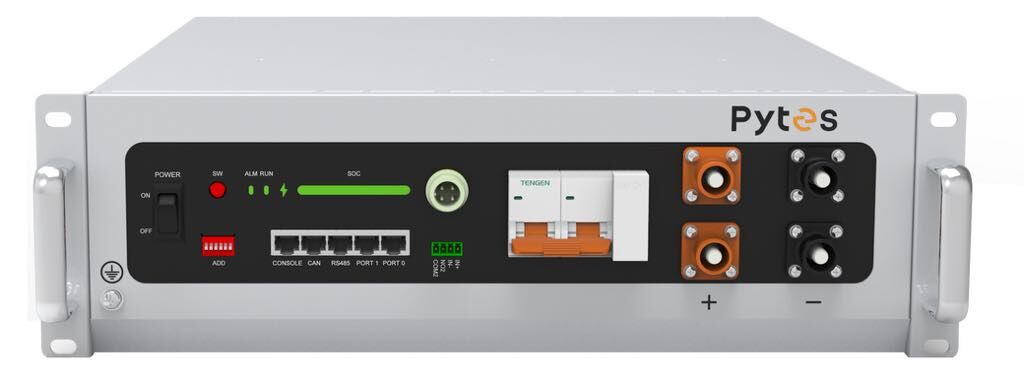

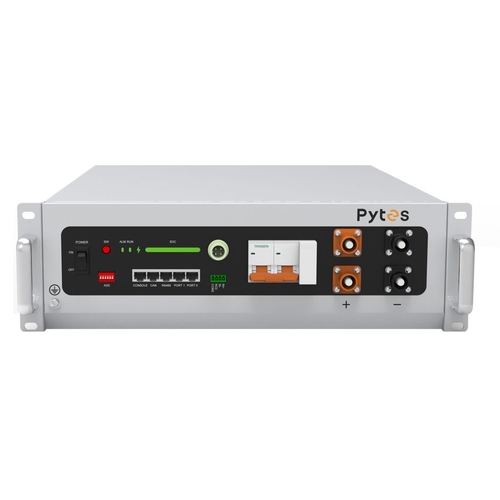

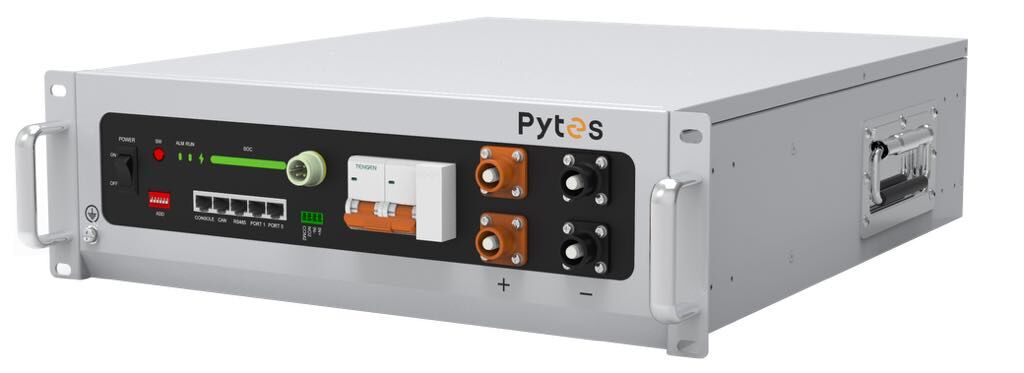

Pytes V5 Alpha Plus 48v 5.12kWh LFP Battery
10 Year RV and Domestic Warranty - CEC and Rebate ready
Electrical Nominal Voltage 51.2V
Voltage Range 47.5V~57.6V
Nominal Capacity 100Ah
Nominal Energy 5.12kWh
Recommended Charge 75A
100A Max. Charge/Discharge Current
Peak Charge/Discharge Current 101A~120A(3min) ; 121A~200A(15sec)
Integrated Breaker DC 125V/125A
General Power Terminal Amphenol Surlok Plus 8.0mm
Chemistry LFP
Communication Protocol CAN / RS485
Dimensions ( L x W x H ) 484 x 578.2 x 140 mm (3.2U) / 19.05 x 22.76 x 5.51 inch (3.2U)
Weight 45.34 kg / 100 lbs
Ambient Temperature -10°C~50°C/14°F~122°F
Round-Trip Efficiency ≥95%
Cycle Life ≥6000Cycles
Warranty 10 Years Recreational and Domestic
Victron Ready
CEC Approved
Rebate Approved
Add-on Functionalities WIFI Connection Remote monitoring and upgrade
Heating Pad Temperature Rise: 10°C/ h/18°F/h
Operation Temperature: -18°C~10°C/-0.4°F~50°F
Scalability 16 pcs (81.92kWh) in a group 6 groups (491.52kWh) in a system w / a Hub
Certifications (On-going) UL9540 Ed.2 (2020), UL9540A, UL1973, CEC, SGIP, CE, IEC62619, UN38.3, SAE J2380
SKU | PYTESV5ALPHA |
Barcode # | PYTESV5ALPHA |
Brand | Pytes |
Shipping Weight | 45.3400kg |
Shipping Width | 0.578m |
Shipping Height | 0.140m |
Shipping Length | 0.484m |
Shipping Cubic | 0.039165280m3 |
Unit Of Measure | ea |
