Shurflo 12V 3.7l Single Fixture Manual Demand Pump

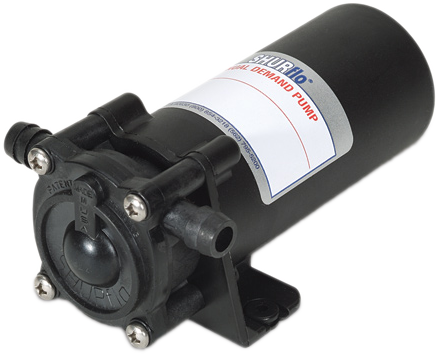

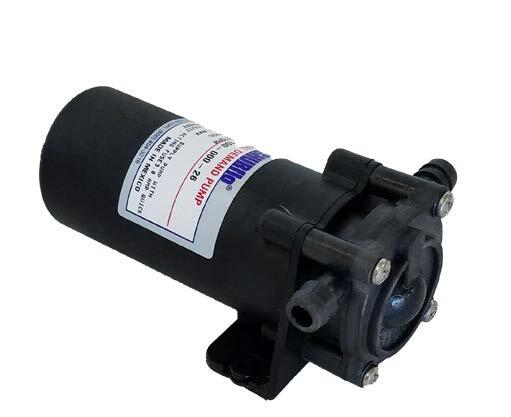

SHURflo 12V 3.7L Single Fixture Manual Demand Pump

The SHURflo 12V 3.7L Single Fixture Manual Demand Pump (Model 100-000-21) is specifically designed for single fixture 12 VDC potable water installations, making it an excellent choice for RV and marine applications. This pump is also versatile enough for general water transfer tasks and can be integrated with electric faucet systems.

Key Features:

• Type: Wobbler Pump
• Ports: 3/8” Barb
• Liquid Compatibility: Handles liquids up to 130 °F (54 °C)
• Prime: Requires a flooded inlet
• Maximum Inlet Pressure: 30 PSI (2.1 Bar)
• Run Dry Capability: No

Electrical Specifications:

• Motor: 12VDC Permanent Magnet, designed for intermittent duty
• Housing: Splash-proof
• Protection: Equipped with thermal overload and automatic restart
• Leads: 16 AWG, 17 inches (43 cm) in length (Red +, Black -)
• Fuse Recommendation: 5 Amp time delay

Materials:

• Housing and Wobbler: Made from durable Ryton
• Hardware: Stainless steel construction

Approvals and Warranty:

• Approvals: c-UL certified
• Warranty: 1-year limited warranty (refer to SB-1041 & SB-1050 for full details)

Shipping Information:

• Net Weight (Boxed): 1 lb (0.45 kg) per unit
• Carton Weight: 24 units per carton, 24 lbs (10.9 kg)
• Carton Size: 14” L x 10” W x 13” H (36 cm x 26 cm x 33 cm)

Performance Metrics:

• At 0 PSI: 1.0 GPM (3.7 LPM), 1.5 Amps
• At 5 PSI: 0.7 GPM (2.6 LPM), 1.7 Amps
• At 10 PSI: 0.3 GPM (1.1 LPM), 2.0 Amps
• At 15 PSI: 0 GPM (0 LPM), 2.4 Amps

The SHURflo 12V 3.7L Single Fixture Manual Demand Pump is engineered for reliability and performance in demanding RV and marine environments. Whether you need it for a single fixture or general water transfer, this pump delivers consistent and efficient operation.
