Safety 800 Jockey Wheel/ Ball Weight Scale

RRP Regular price $169.95
Sale price $8500 SAVE 50% · Save $84.95
Tax included Shipping calculated at checkout.

or 4 interest-free payments of $21.25 with Afterpay

  • Built-In Ball Weight Scale
  • 800 lb (362 kg) Capacity
  • Swing-Up With 150 mm Wheel

Orders placed before 8am (AEST/AEDT) on a business day are dispatched the same day. After 8am, or on a weekend, they are dispatched the next business day.

Accepts returns*

  • Guaranteed

    Backed by us and the manufacturer.

  • Ferntree Gully showroom

    Visit our 3,000 sqm showroom.

  • 25+ years in caravanning

    Local experts who know RVs.

  • Expert advice

    Call 03 9753 5511

  • Secure checkout

    Pay safely, including Afterpay.

SAFETY 800  |  SKU: 9005

Delivery and Shipping

We ship Australia-wide using trusted carriers including Australia Post and Direct Freight Express.

Fast dispatch: Orders placed before 8am (AEST/AEDT) on a business day (Monday to Friday) are dispatched the same day. Orders placed after 8am, or on a weekend, are dispatched the next business day. Public holidays are not included in this timing.

Tracking Included: All parcels come with tracking for peace of mind.

Reliable Service: We choose carriers based on speed, reliability, and coverage.

Delivery Options:
Standard and express options available at checkout.

For more details or specific delivery questions, feel free to contact our team.

Description

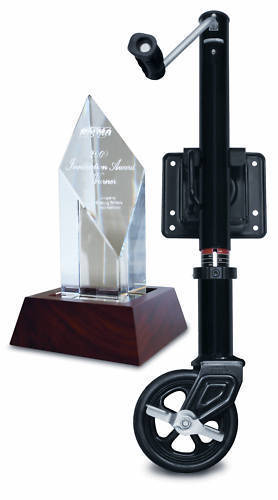

The Safety 800 is a swing-up jockey wheel with a built-in tow ball weight scale. It does the normal job of a jockey wheel – supporting and manoeuvring your caravan, camper or trailer – and lets you read the ball weight on the jockey wheel itself, so you can check it while you hitch up without a separate scale.

Key features

  • Integrated ball weight scale that reads from 200 to 800 lb
  • 800 lb (362 kg) capacity
  • Lock and Go collar
  • 150 mm (6") wheel
  • Swing-up design that folds up out of the way for travel

How to check your tow ball weight

  • Load the caravan or trailer as you would for travel, including water tanks, gas and gear.
  • Park on firm, level ground and chock the wheels.
  • Wind the jockey wheel down until it carries the full weight of the drawbar and the coupling is lifted clear of the tow ball. Keep the drawbar close to its normal towing height for an accurate reading.
  • Read the ball weight from the graduated scale on the jockey wheel.
  • Compare the reading with the ball weight limits for your tow vehicle, towbar and caravan or trailer. If it is too high or too low, adjust your load and check again before you couple up.

Always follow the manufacturer's instructions and the load ratings set by your vehicle, towbar and caravan or trailer manufacturers.

Specifications

Brand Safety 800
Type Swing-up jockey wheel with integrated ball weight scale
Capacity 800 lb / 362 kg
Scale reading range 200–800 lb
Wheel 150 mm (6")
Height (centre to ground) 440 mm (lowest) to 700 mm (highest)
Centre pivot 533 mm
Overall dimensions 765 × 150 × 179 mm
Collar Lock and Go collar

Fit check

  • Height: the jockey wheel adjusts from 440 mm to 700 mm, centre to ground. Make sure your coupling height sits within this range when the caravan or trailer is level.
  • Capacity: your ball weight must be no more than 362 kg (800 lb). The scale reads from 200 lb, so it is not suited to very light ball weights.
  • Mounting: the Safety 800 fits with its own swing-up mounting bracket and bolt-on plate (pictured), not a standard jockey wheel clamp. If you are unsure whether it suits your drawbar, contact our team before you buy.

FAQ

  • Can I check ball weight while hitching up?
    Yes. The scale is built into the jockey wheel, so you can read the ball weight as you wind the drawbar up to coupling height, without a separate scale.
  • What is the maximum ball weight it can measure?
    The scale reads from 200 to 800 lb, and the jockey wheel is rated to 800 lb (362 kg). If your ball weight is higher, choose a higher-rated jockey wheel and ball weight scale.
  • Is it a swing-up or a clamp-on jockey wheel?
    It is a swing-up jockey wheel that mounts with its own bracket. It does not use a standard jockey wheel clamp.
  • What should my ball weight be?
    Check the limits set by your vehicle, towbar and caravan or trailer manufacturers, and stay within the lowest of them.
