iCheckTPMS Airbag Pressure Sensors ICAB
Description
Description

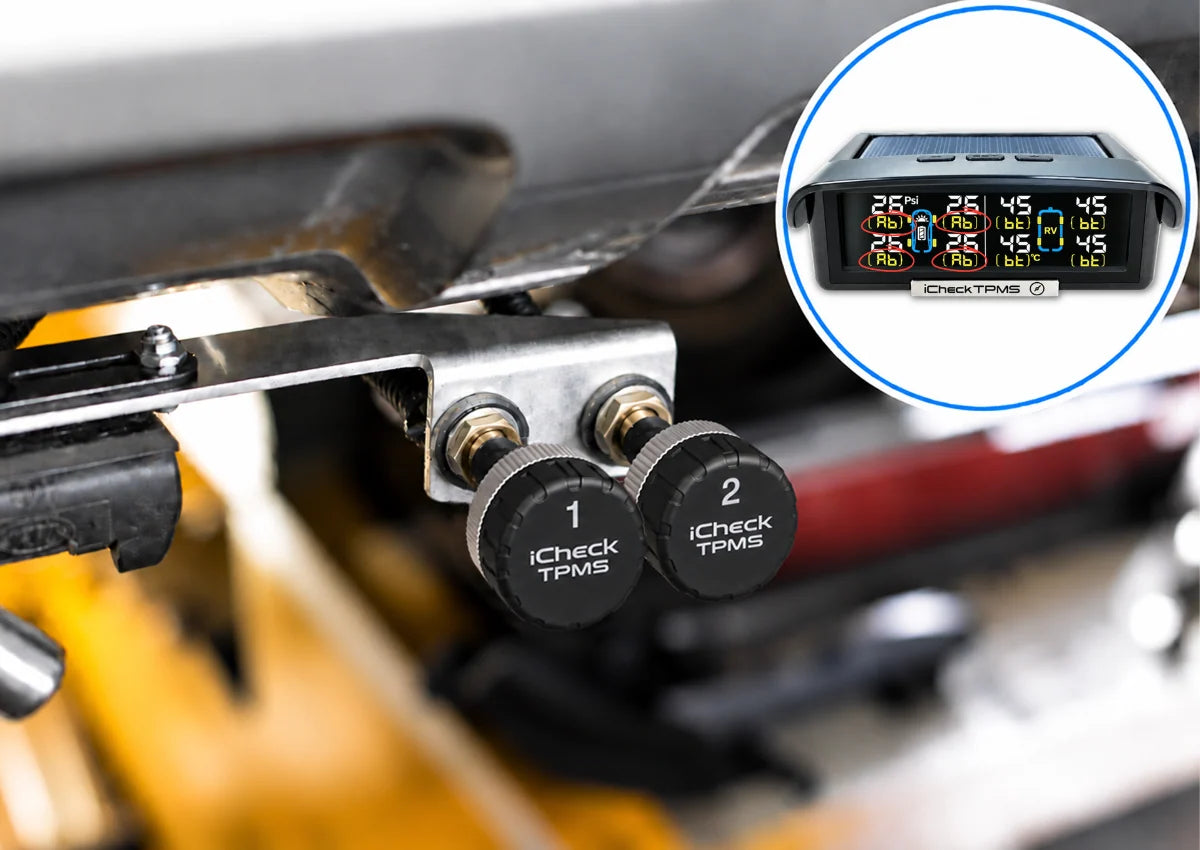

Expand your iCheckTPMS system with Airbag Pressure (AB) Sensors and monitor your airbag suspension pressure directly from your iCheckTPMS Smart Monitor.
Designed for vehicles and caravans with airbag suspension, the sensors display live pressure readings in PSI, giving you convenient visibility of your suspension pressure while travelling, towing or heading off-road.
Up to 4 Airbag Pressure Sensors can be connected to a compatible iCheckTPMS system.
Note: AB Sensors display live PSI readings only and do not have alarm settings.
Key Features
- Live Airbag Pressure Monitoring – View your airbag suspension pressure in PSI directly on the iCheckTPMS monitor.
- Monitor Up to 4 Airbags – Supports up to 4 Airbag (AB) Sensors within the iCheckTPMS system.
- Integrated With iCheckTPMS – Airbag pressure information is displayed through the same smart monitoring system.
- Easy Pairing – Pair each AB Sensor through the iCheckTPMS system and assign it to the desired airbag position.
- Secure Installation – Supplied with a locking screw and Allen key to help reduce the risk of sensor theft.
- High-Pressure Capability – Working pressure range of 0–188 PSI (0–13 BAR).
- Long Battery Life – Expected battery service life of approximately 12–18 months, with replacement recommended every 12 months.
Specification
- Working Pressure – 0~188PSI (0~13 BAR)
- Working Temperature – -40℃~80℃
- Storage Temperature – -40℃~85℃
- Frequency – 433.92MHz
- Transmission Power – <10dBm
- Pressure Accuracy – ±1.5PSI (±0.1BAR)
- Temperature Accuracy – ±3℃
- Dimension – 24.5(dia.) x 30(H)mm
- Weight – 15.4g

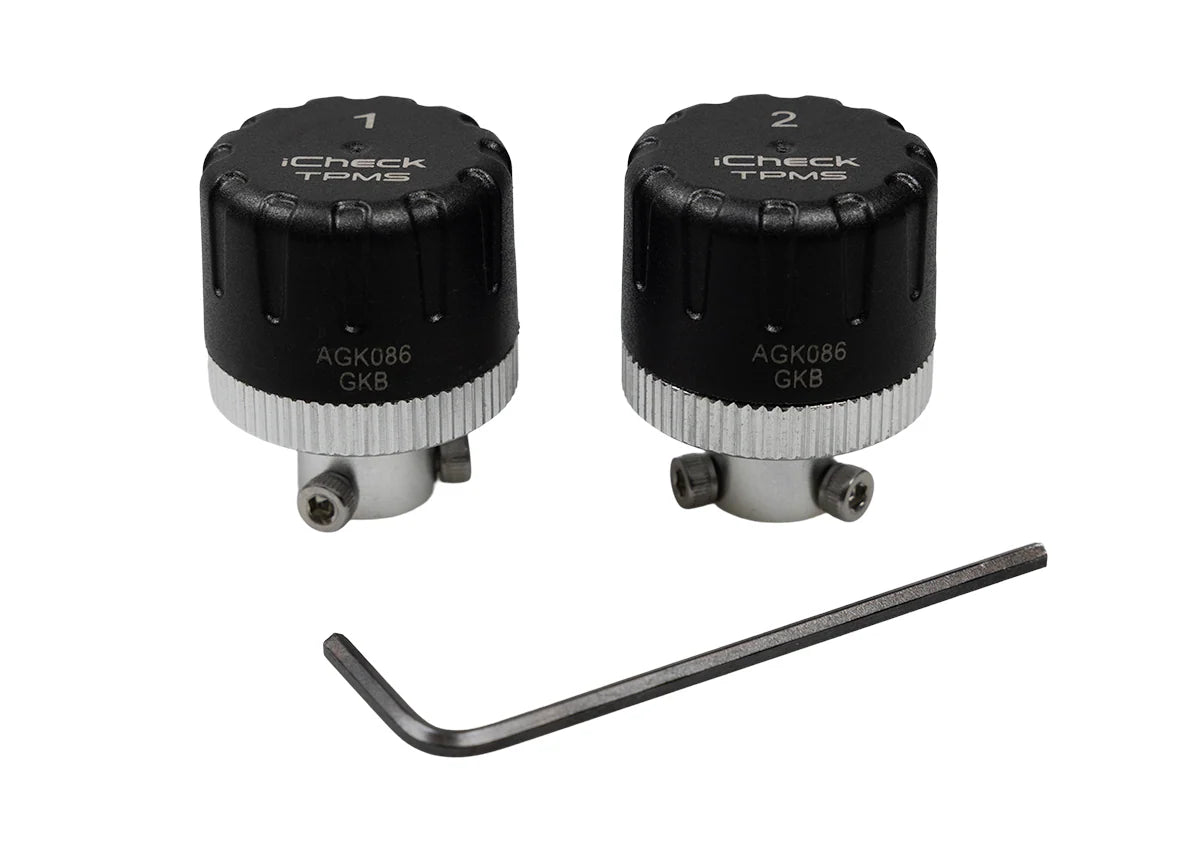

Pack Includes:
- 2x iCheckTPMS Airbag Pressure (AB) Sensors
- Locking Screws
- Allen Key
Warranty: 15 Months from date of purchase.
