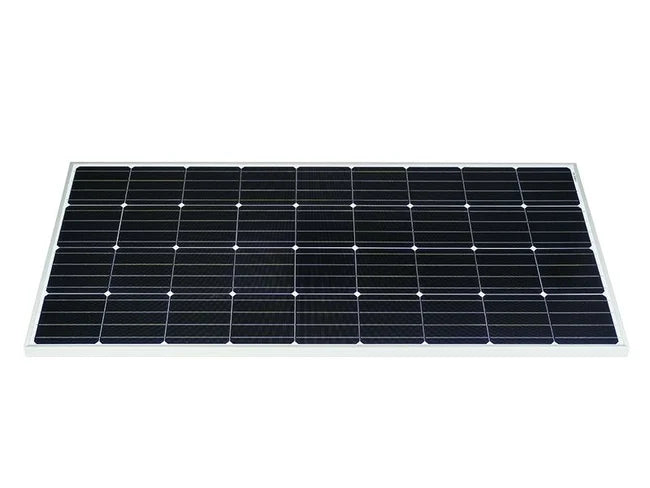

Camec 170W 12V Solar Panel
Orders placed before 8am (AEST/AEDT) on a business day are dispatched the same day. After 8am, or on a weekend, they are dispatched the next business day.
Accepts returns*
Couldn't load pickup availability
Guaranteed
Backed by us and the manufacturer.
Ferntree Gully showroom
Visit our 3,000 sqm showroom.
25+ years in caravanning
Local experts who know RVs.
Expert advice
Secure checkout
Pay safely, including Afterpay.
Delivery and Shipping
Delivery and Shipping
We ship Australia-wide using trusted carriers including Australia Post and Direct Freight Express.
Fast dispatch: Orders placed before 8am (AEST/AEDT) on a business day (Monday to Friday) are dispatched the same day. Orders placed after 8am, or on a weekend, are dispatched the next business day. Public holidays are not included in this timing.
Tracking Included: All parcels come with tracking for peace of mind.
Reliable Service: We choose carriers based on speed, reliability, and coverage.
Delivery Options: Standard and express options available at checkout.
For more details or specific delivery questions, feel free to contact our team.
Camec 170W 12V Solar Panel
Description
Description
CAMEC 170W mono-crystalline solar panel use solar cells which are manufactured using the latest manufacturing techniques and highest grade of mono-crystalline.Each solar cell has a SIN surfaceanti-reflective coating which provides a uniform blue colour and helps to absorb more light under all weather conditions.Together with Black Surface Field (BSF) structure, the solar cell shows superior conversion efficiency.
FEATURES
- Bypass diode to minimise power drop caused by shade
- Anti-reflective high transparency tempered glass
- Solar cell embedded in EVA
- Tedlar foil backing
SPECIFICATIONS
- Size of solar cell: 156x156mm
- Max Power Ouput (pm): 170 Watt
- Output Tolerance: +5%
- Open Circuit Voltage (Voc): 21.6V
- Short Circuit Voltage (lsc): 10.09A
- Working current (lpm): 9.44A
- Working voltage (Vpm): 18V
- Type of output terminal: MC4 Compatible
- Testing Conditions: AM11.5, 1,000W/m2, 25C
- Weight: 12.5kg
Camec 170W mono-crystalline solar panel use solar cells which are manufactured using the latest manufacturing techniques and highest grade of mono-crystalline. Each solar cell has a SIN surface anti-reflective coating which provides a uniform blue colour and helps to absorb more light under all weather conditions. Together with Black Surface Field (BSF) structure, the solar cell shows superior conversion efficiency.
FEATURES
- Bypass diode to minimise power drop caused by shade
- Anti-reflective high transparency tempered glass
- Solar cell embedded in EVA
- Tedlar foil backing
SPECIFICATIONS
- Size of solar cell: 156x156mm
- Max Power Ouput (pm): 170 Watt
- Output Tolerance: +5%
- Open Circuit Voltage (Voc): 21.6V
- Short Circuit Voltage (lsc): 10.09A
- Working current (lpm): 9.44A
- Working voltage (Vpm): 18V
- Type of output terminal: MC4 Compatible
- Testing Conditions: AM11.5, 1,000W/m2, 25C
- Dimensions: 1460 L x 664 W x 35 D
- Weight: 12.5kg
