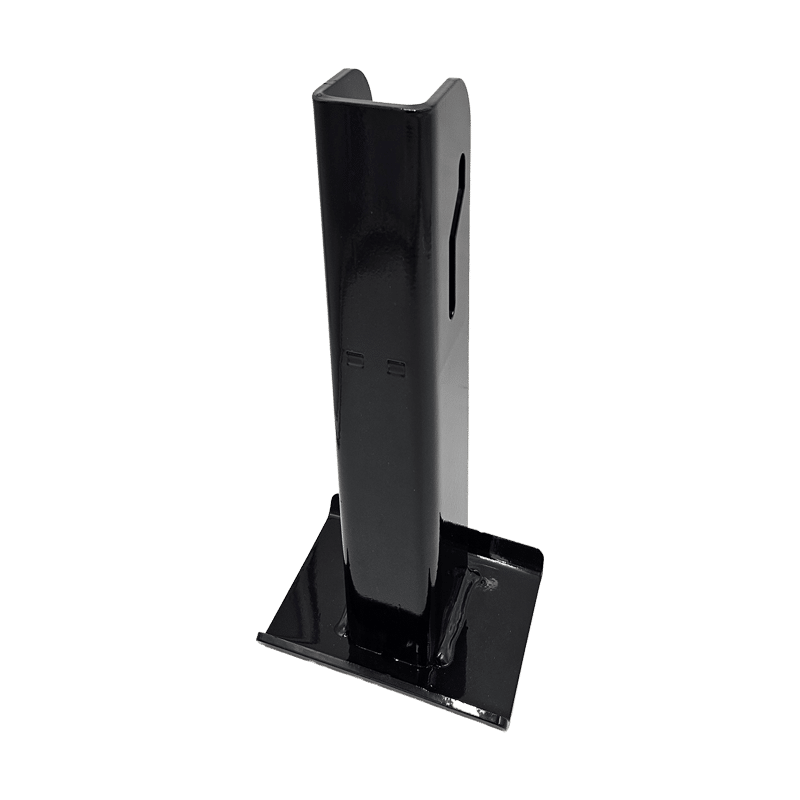

Black Jack Folding Foot for Mini

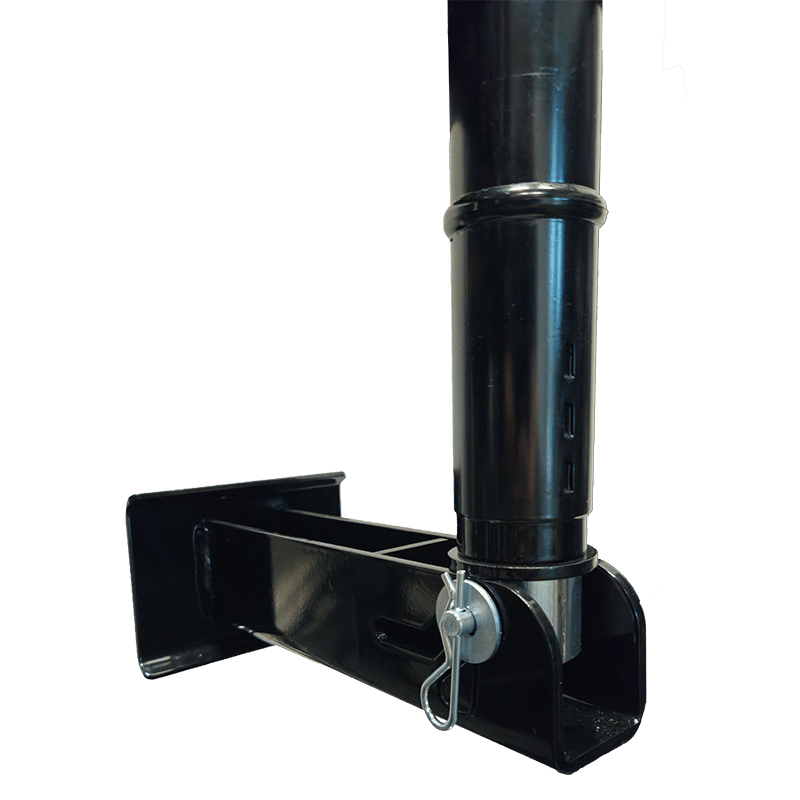

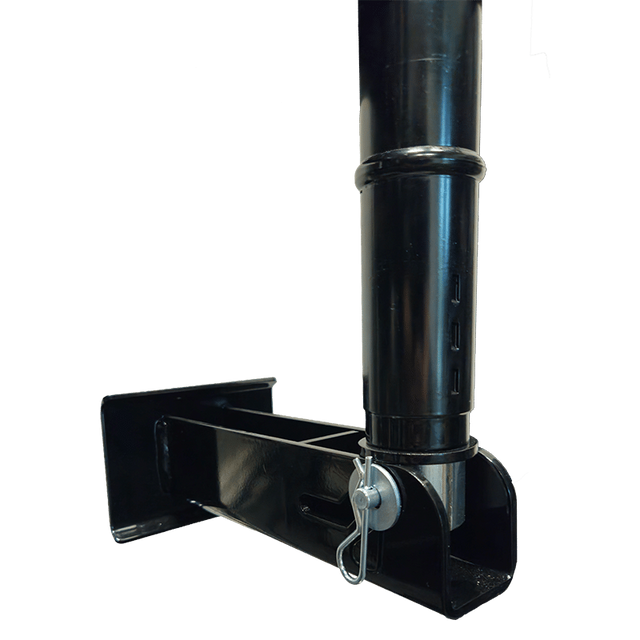

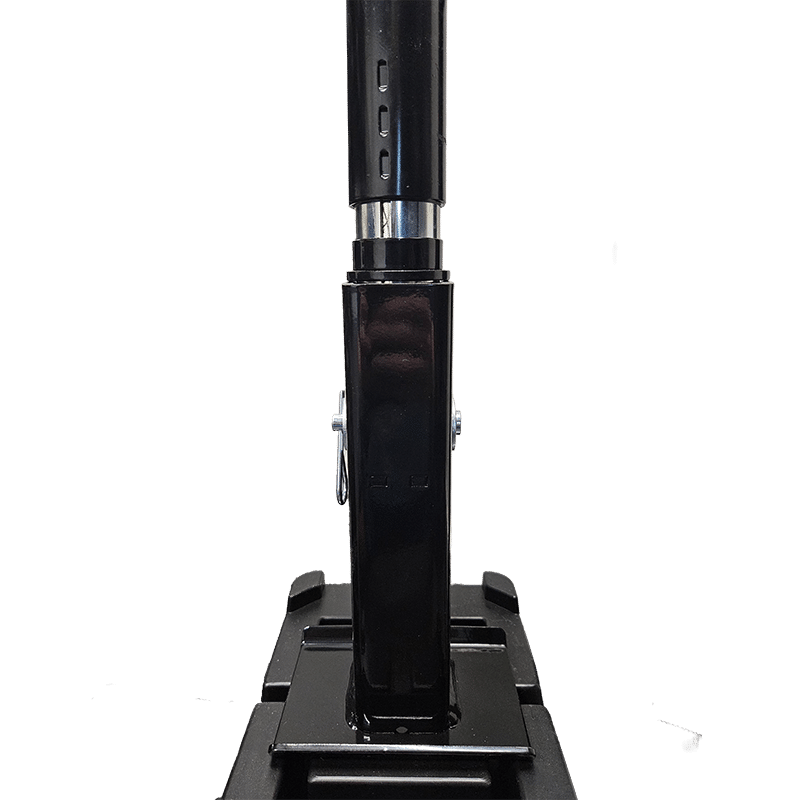

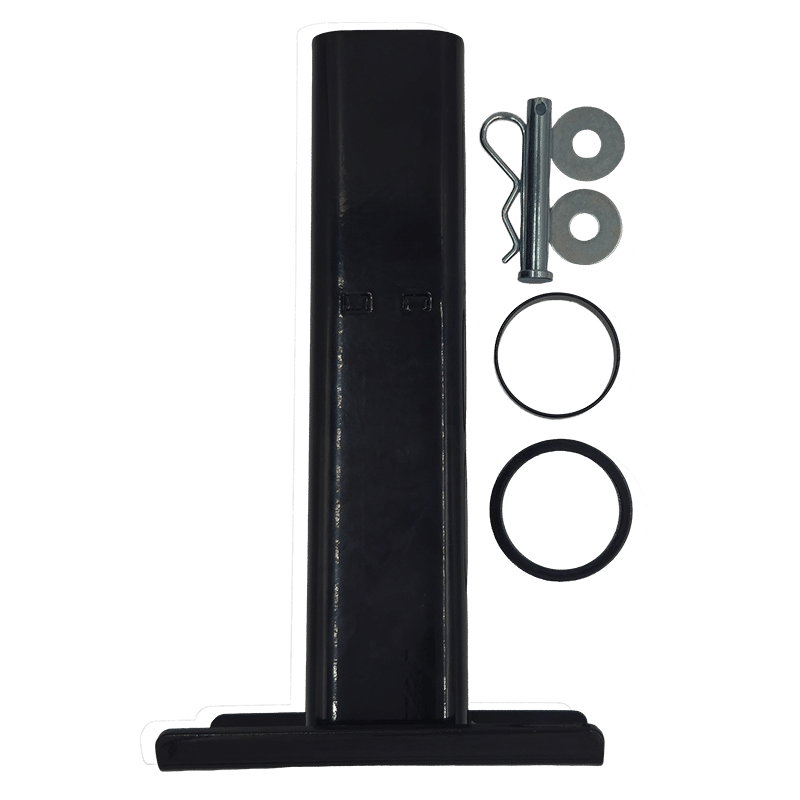

The amazing Black Jack Folding Foot Mini is designed to easily connect to the shaft of the Black Jack Mini in just a few easy steps. Simply remove the existing silver foot. Position and align the Mini Folding Foot in its place, add the collar and ring, and insert the pin in the holes provided. Makes operating the Mini faster and easier and improving your hitch and unhitch experience.

In addition to these custom designed features for the Black Jack Folding Foot:

• Made strong from protective powder coated mild steel, suitable for harsh environments.
• Designed for rapid deployment and retraction saving you time.
• No more bending down when using your trailer jack or jockey wheel.
• Amazingly light weight and can be permanently mounted or stowed away in compact spaces.
• Corrosion, oil and chemical resistant.

Warning and Caution!!

Black Jack Folding Foot Installation.

• The folding foot must be installed so that it is clear of any obstructions. The folding foot must be able to freely extend and retract to its full extension and full horizontal retraction.
• If the foot encounters an obstruction, for example a chassis rail or brake cables, before it is fully retracted to a horizontal position then there is a risk of serious internal mechanical damage to the Black Jack Mini. The damage is caused by the leverage pressure (up to 1,000kg) the folding foot can add it if encounters an obstruction. This type of damage is NOT covered under warranty as it is a user installation error.
•  When installing the folding foot, make sure the Black Jack Mini orientation allows for full clearance of the folding foot. This may mean rotating the orientation of the Black Jack Mini.
•  If the folding foot cannot be installed so that it is clear of obstructions, then DO NOT USE IT.  Install the silver foot instead.

  Please note: The Mini folding foot suits the Black Jack Mini only. It will not fit other Black Jacks or other electric jacks.

BLACK JACK Trailer Jack Folding Foot Dimensions

• Diameter Foot Plate: 15.2cm x 11.5cm
• Height: 25cm
• Weight: 2.2kg
• Maximum Load: 1,000kg
