50A DC Circuit Breaker Fuse Reset 12-24V
Description
Description

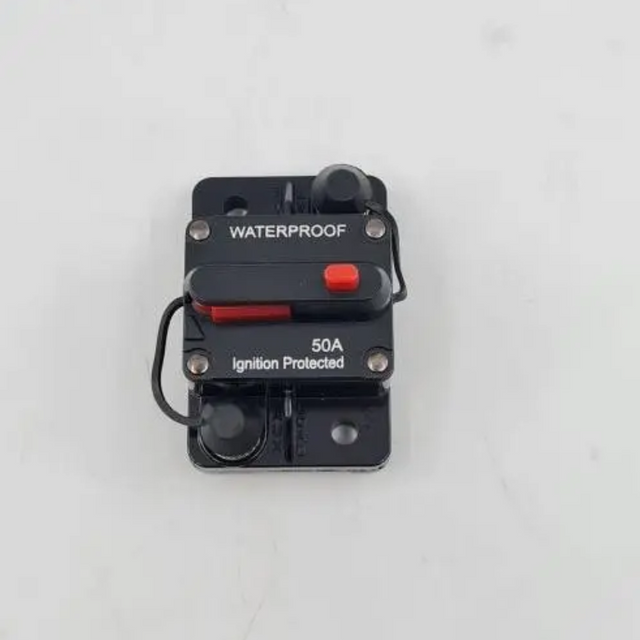

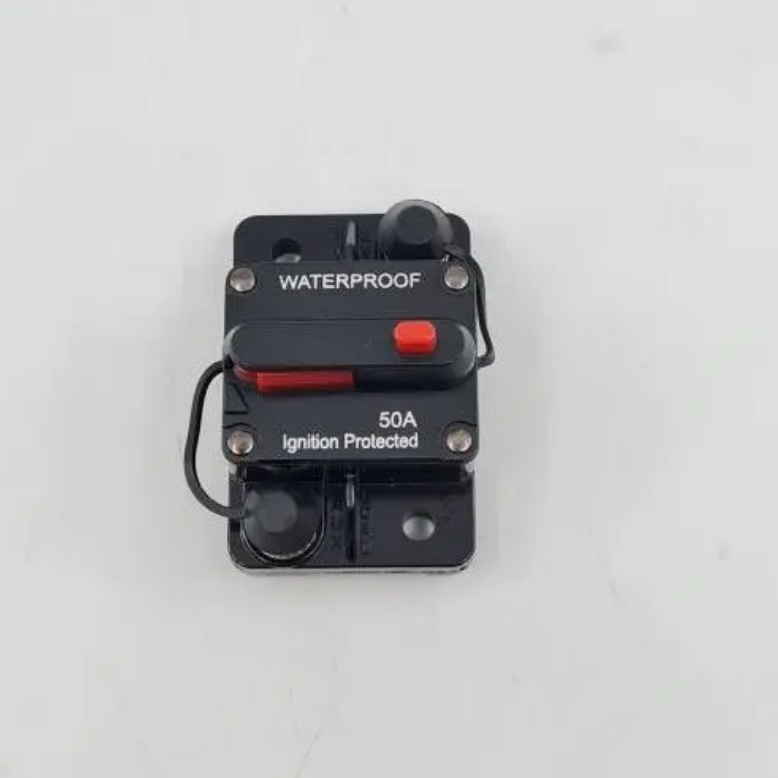

50A DC Circuit Breaker Fuse Reset 12-24V
Reliable 50A DC Circuit Breaker Fuse: Protection for High-Current Circuits
The 50A DC Circuit Breaker Fuse is your go-to solution for safeguarding high-current circuits in various applications. With a 12-24V reset range, this high-current circuit breaker ensures swift power protection using bimetal structures, swiftly responding to circuit overloads.
Versatile Application
This circuit breaker finds wide application in specialized vehicles, off-road vehicle winches, as well as in electrical controls for yachts and ships. Its surface mount, inclusive of protective stud insulators, offers easy and safe installation.
Specifications:
- Rated Current: 50 AMP
- Interrupt Rating: 3KA@48VDC
- Housing Material: Thermal Plastic UL rated 94V0
- IP Rating: IP67 (Splash and dustproof)
- Operating Temperature: -32øC to 82øC (-25øF to 180øF)
- Storage Temperature: -34øC to 149øC (-30øF to 300øF)
- Stud Size: M6 and 1/4"-28 threads per inch
Compliance and Testing
Compliant with standards such as SAE J1625, SAE J1171, UL1500 Ignition Protect, this circuit breaker has undergone a series of rigorous tests. These include overload trip tests, voltage drop tests, current limitation tests, and endurance tests in various environmental and extreme conditions.
Reliable Protection
The 50A DC Circuit Breaker Fuse is built to withstand environmental extremes and transient current cycles, ensuring a durable and reliable performance under challenging conditions. Its interrupt capacity, endurance, and resilience make it a crucial component for securing high-current circuits in diverse applications.
