120W Portable Solar Blanket Kit with Controller
Description
Description

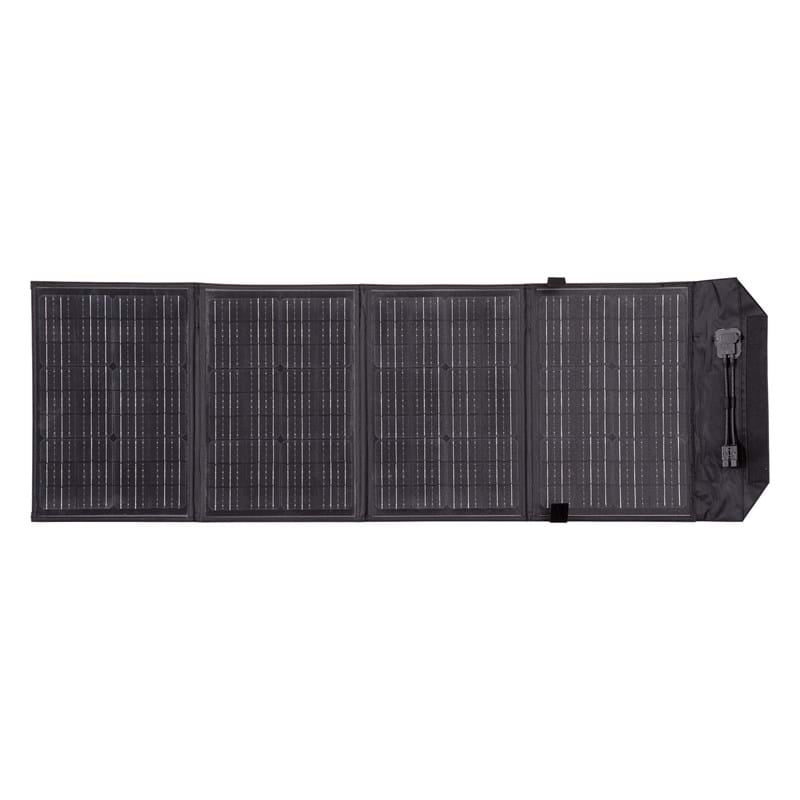

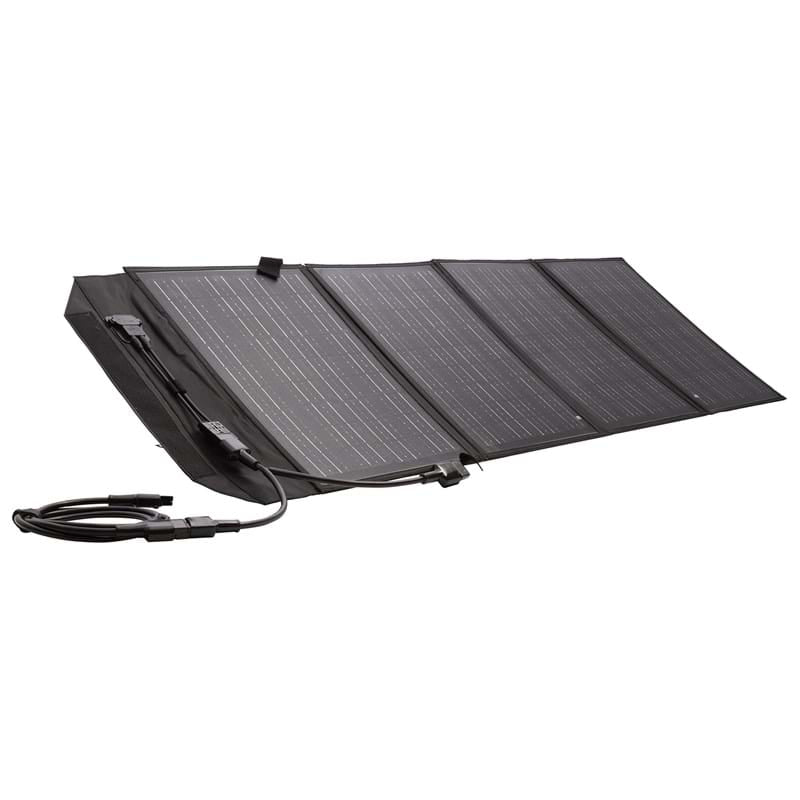

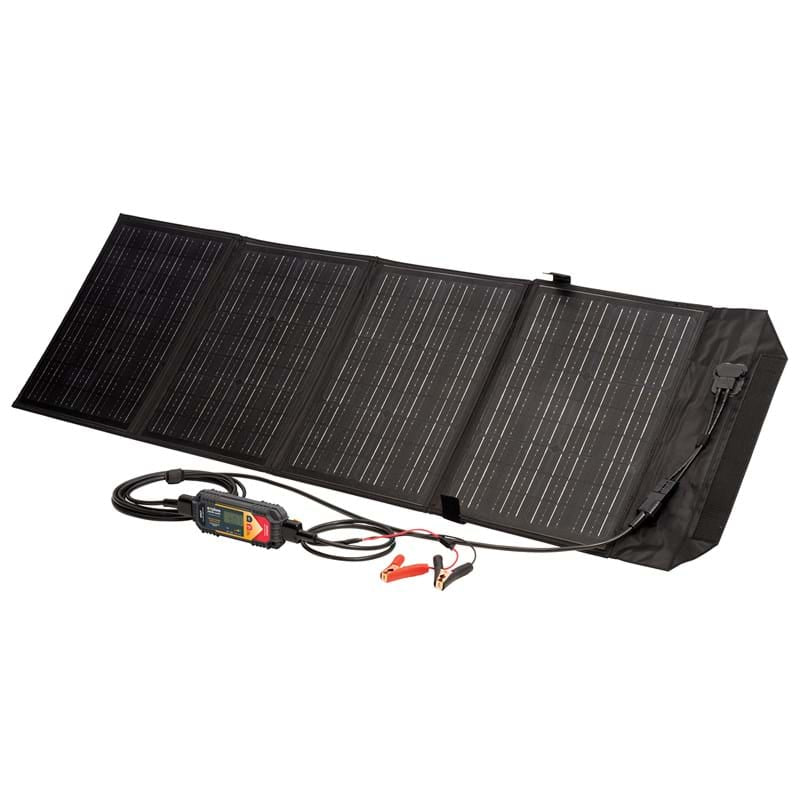

120W Portable Solar Blanket Kit with Controller
The Explore Planet Earth 120W Portable Solar Blanket Kit with Controller is a high performance, ultra-compact solution for solar charging most common chemistry types of 12V DC batteries, including Lithium Iron Phosphate (LiFeP04). It is one of the easiest and fastest ways to keep your battery charged up at your campsite. It folds out in seconds and takes less than a minute to hook up thanks to the quick connect, Anderson type plugs!
The monocrystalline solar cells ensure the highest efficiency possible! This lightweight and compact blanket will produce up to 6.6A in optimal conditions.
The 120W Portable Solar Blanket Kit with Controller is designed for Australia’s tough conditions, using high quality components and the latest in solar cell technology which provide dependable performance and reliability in an easy to use extremely compact and portable solar kit.
Specifications:

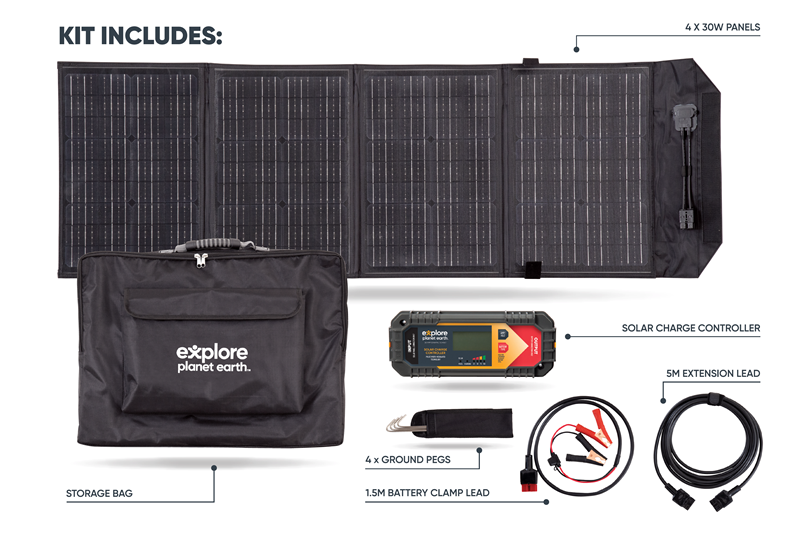

KIT INCLUDES:
- 12V DC, 6 stage smart charger, 20A lnline PWM weather resistant controller
- 4 x 30W panels
- 50A heavy duty Anderson type plugs on all leads
- 5M extension lead
- 1.5M battery clamp lead – fused, twin core 4mm2 with UV stable outer sheath

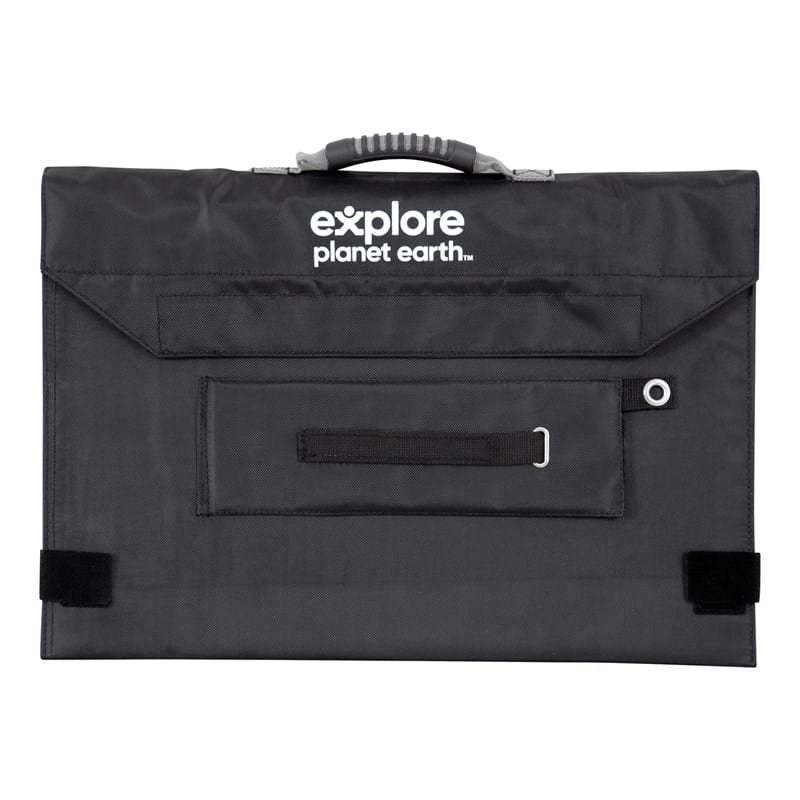

- Carry and storage bag
- 4 x ground pegs
CELLS / PANELS:
7 layer cell with ETFE Coating
Built in panel stand
- Cell make: PERC
- Cell type: Monocrystalline
- Cell efficiency: 21.65%
- Cell qty & panel qty: 4 x 30W panels
- Maximum power (Pm): 120w
- Current at max power (Imp): 6.66A
- Voltage at max power (Vmp): 18v
- Open circuit voltage (Voc):22v
- Short circuit current (lsc):7A
- Extension leads: 4mm2 (AWG12)
- Output and lead connection: 50A Anderson Type
- Cell Encapsulation: ETFE lamination
- Bag fabric: Polyester 900D
- Adjustable support legs: Yes
- Folded dimension L x W x H: 560mm x 420mm x 40mm
- Unfold dimension L x W: 1700mm x 560mm
- Net weight (total kit): 7.0Kg (including accessories)
PORTABLE SOLAR 20A INLINE SOLAR CHARGE CONTROLLER
Charges 5 types of batteries: GEL, AGM, WET (Lead Acid), Lithium Iron Phosphate (LiFePo4) and Lead Crystal
Solar Controller uses Pulse Width Modulation (PWM) technology to produce clean and consistent power
LCD Screen displays charging current, battery voltage and charging capacity (Amp hour) with LED indicators to show battery charge percentage.
50A Anderson type connectors for durability and ease of setup
Weather resistant and rugged design construction
- Micro control unit: Pulse Width Modulation
- Rated solar panel amps: 12V DC 20A
- Digital readout: LCD.
- Number of battery types that can be charged: 5
- Input and Output connectors: 50A Anderson Type
- Dimension L x W x H: 200mm X 80mm X 44mm
- Weather resistance: Yes
Suitable for camping, 4WDriving, caravaning, boating and other outdoor activities
Suggested applications depending on battery capacity: 12V LED lighting, 12V portable TV, 12V bilge pump, mobile devices, 12V portable fridge, 12V portable fan, 12V shower water pump
