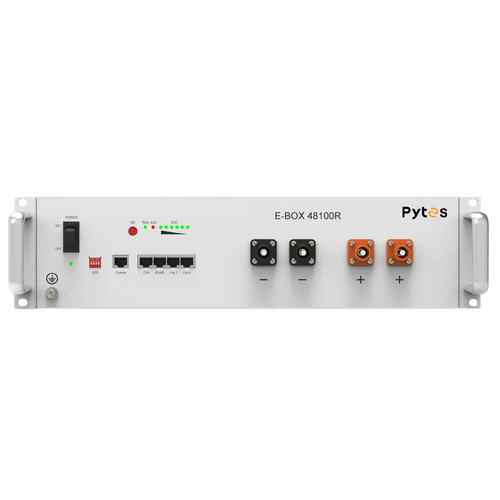

E-Box-48100R LFP Battery
The advanced solar battery storage delivers safer and more efficient energy storage.
Compatible with all leading inverters, E-Box-48100R is a smart choice for battery replacement, expansion or a new installation.
The solar battery storage enables homeowners to store energy generated from renewable sources, reducing their reliance on the grid
https://www.pytesaustralia.au/e-box-48100r?wix-vod-comp-id=comp-lvjq0f06
E-BOX 48100R Electrical Nominal Voltage 51.2V
Voltage Range: 47.5V-57.6V
Nominal Capacity: 100Ah
Nominal Energy: 5.12kWh
Usable Energy: 4.608kWh
Recommended Charge: 50A (2.56kW DC)
Recommended Discharge Current: 50A (2.56kW DC)
Peak Discharge Current: 102A (5.22kW@15s)
Battery Chemistry: LFP
Communication Protocol: CAN/RS485
Dimensions (L x W x H): 440*620*117mm/17.32*24.41*4.61 inch(2.6U)
Weight: 51kg / 112.5lbs
Charging Temperature: 0℃~ 45℃/32°F~113°F
Discharging Temperature: -10℃~ 50℃/14°F~122°F
Round-Trip Efficiency: ≥95%
Cycle Life: ≥6000 cycles
Warranty: 10 Years
Scalability: 16 pcs (81.92kWh) in a group 6 groups (491.52kWh) in a system w/a Hub
Certifications UL9540 Ed.2 (2020), UL9540A, UL1973, CEC, SGIP, CE, IEC62619, UN38.3
SKU | E-BOX48100R |
Barcode # | E-BOX48100R |
Brand | Pytes |
Shipping Weight | 51.0000kg |
Shipping Width | 0.440m |
Shipping Height | 0.117m |
Shipping Length | 0.620m |
Shipping Cubic | 0.031917600m3 |
Unit Of Measure | ea |
