Sunman 200W eArc Black Square Flexible Solar Panel
Description
Description

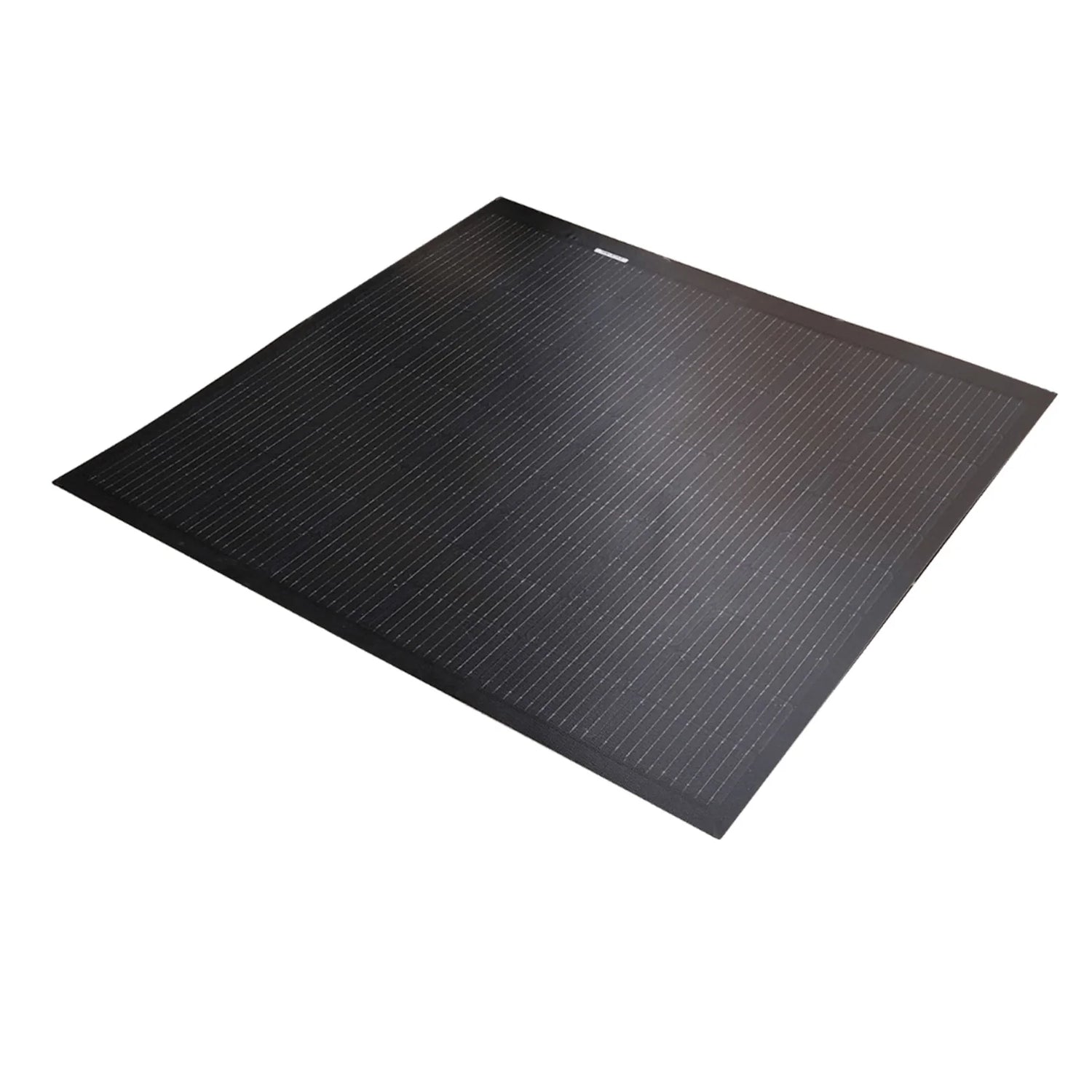

Sunman eArc 200W Black Square Flexible Solar Panel - Compact and Efficient Mono-PERC Solar Panels - Junction Box Underneath
Superior solar technology with the newly improved, compact Mono-PERC solar panels. These lightweight yet robust panels are perfect for various applications, including caravans, motorhomes, yachts, trains, and buses.
Key Features:
- Lightweight and durable construction with cutting-edge technology
- Highly efficient monocrystalline cells for optimal energy production

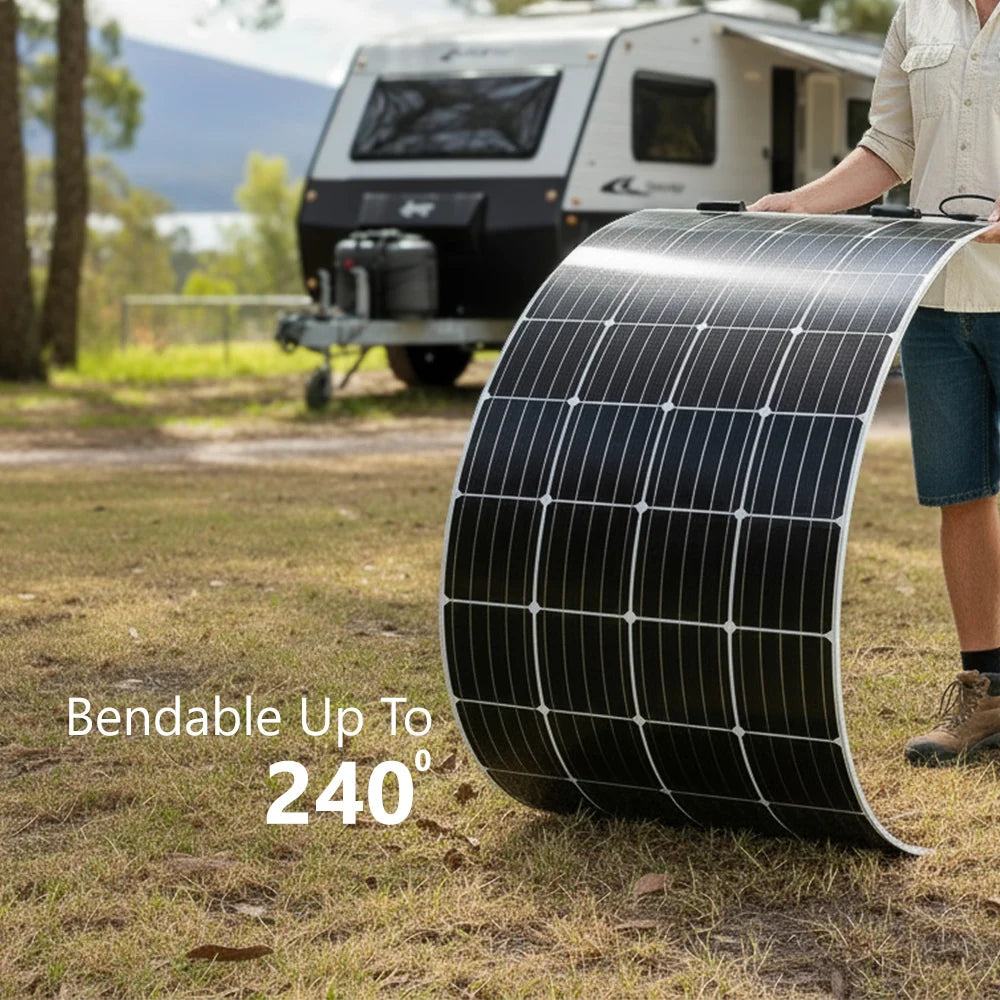

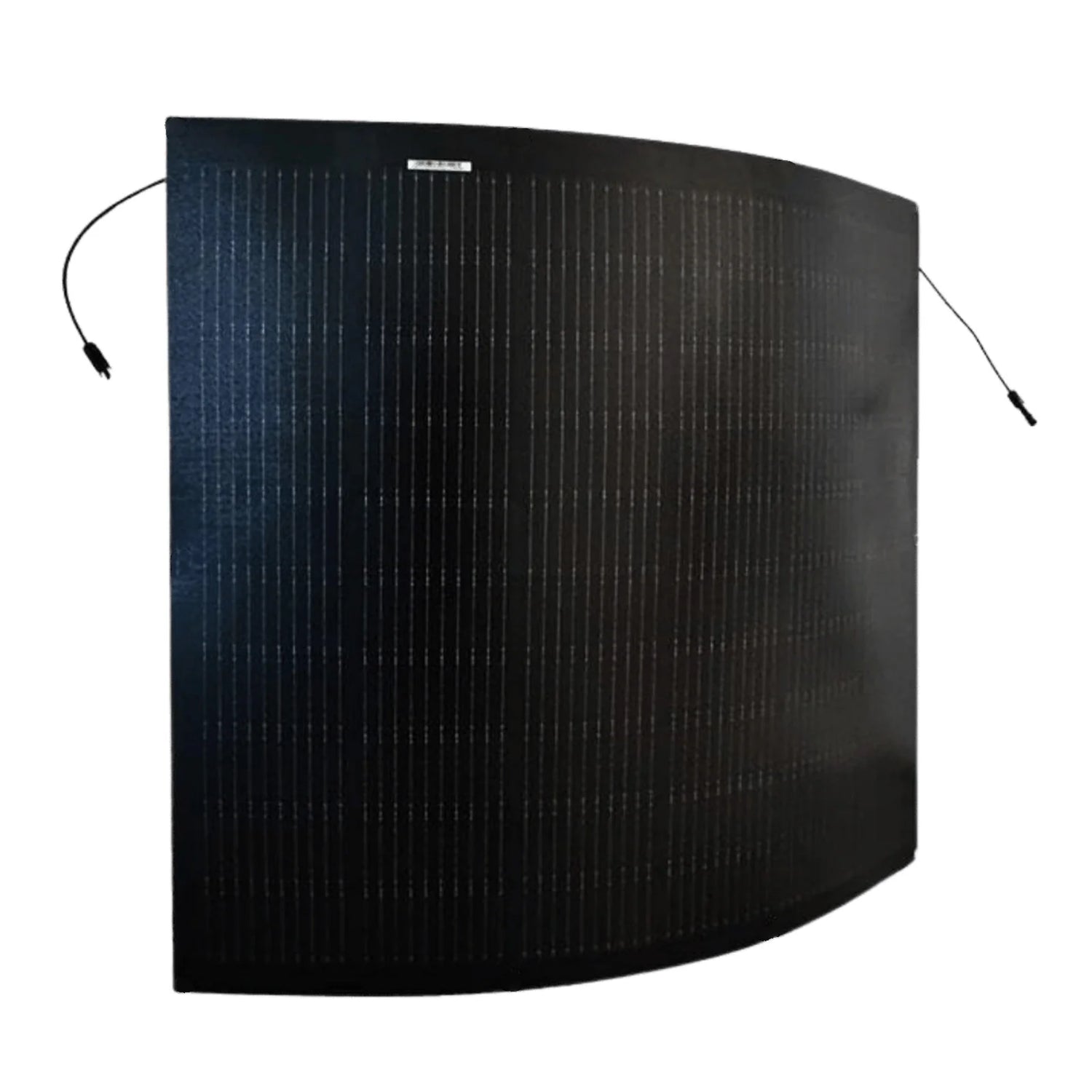

- Flexible design for easy installation on various surfaces
- Endorsed by the Clean Energy Finance Corporation and Australian Renewable Energy Agency
- CEC-approved for residential and commercial use
- 10-year product warranty for buildings and 5 years for mobile applications
Crafted using a patent-pending composite material akin to airplane windows, Sunman solar panels offer unmatched durability. Approved by the Clean Energy Council for residential use, these panels are tough without the need for a heavy, rigid frame or glass. Explore the 'About Sunman' tab for more details.
Optional Mounting Solutions
Multiple mounting options available, ensuring a secure and efficient installation that meets your specific needs. Please carefully follow the mounting instructions here which include the below:
- Vented Gap Kit: Improves panel efficiency and reduces surface heating. Includes high bond double-sided adhesive tape and polycarbonate strips. (Height increase of approximately 15mm)
- High Bond Double-Sided Adhesive Tape: Provides a low-profile, secure bond for smooth surfaces. (2.3mmH x 12mmW x 16.5mL)
- Structural Silicone (Fix8): Can be used to adhere the panel to a surface.
Experience the difference of Sunman eArc solar panels for yourself, and join the countless satisfied customers who have made the switch to a more sustainable and efficient energy solution.
In some instances there may be slight manufacturing changes between batches. If you are adding to an existing array, please check with the sales team to review any variances.
Specifications
| Model | SMF200J-6X10DB-Se | |||
| Solar cells | 40 (4x10) | |||

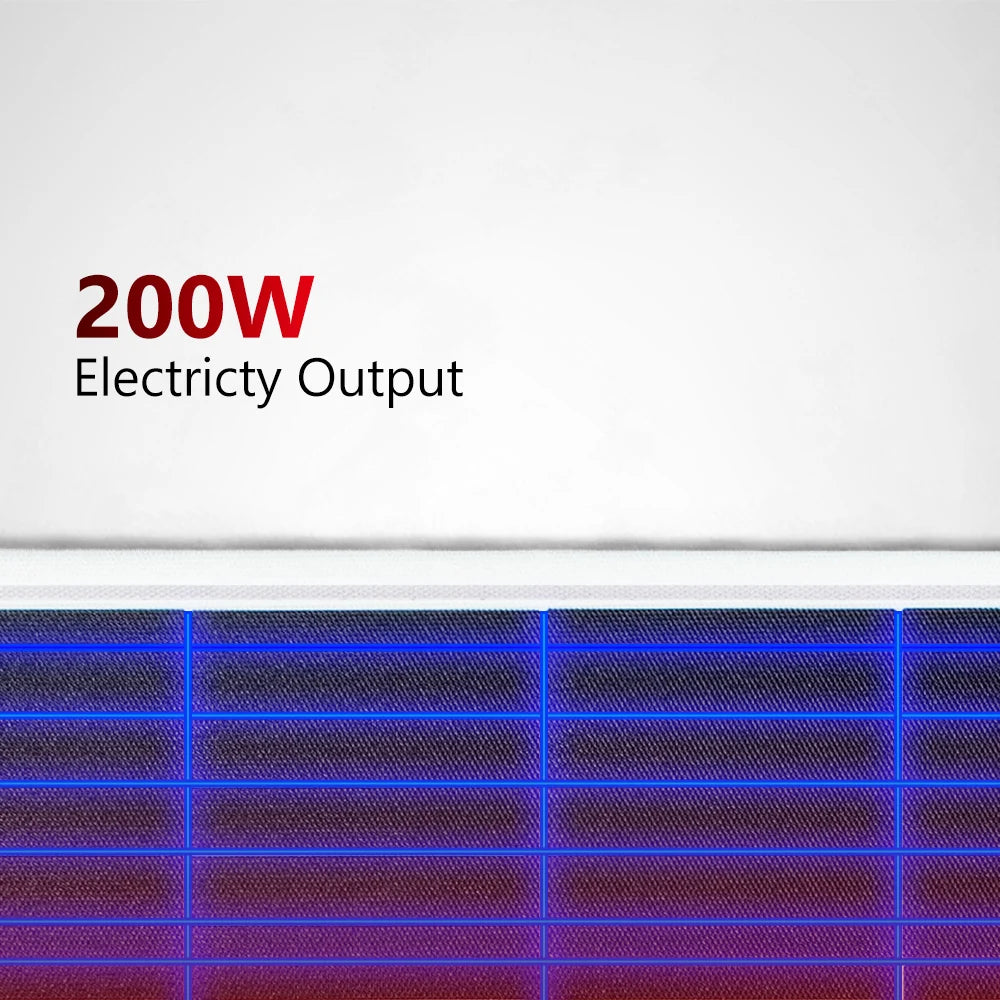

| Maximum Power (Pmax) | 200 | |||
| Maximum Power Voltage (Vmp) | 34.7 | |||
| Maximum Power Current (Imp) | 5.78 | |||
| Open-circuit Voltage (Voc) | 41.1 | |||
| Short-circuit Current (Isc) | 6.66 | |||
| Operating Temperature (°C) | -40 °C to 85 °C | |||
| Maximum System Voltage | 1000 V DC (IEC) | |||
| Maximum Series Fuse Rating | 20 A | |||
| Application Class | Class A | |||
| Power Tolerance | 0/+5 W | |||
| Backsheet | White | |||

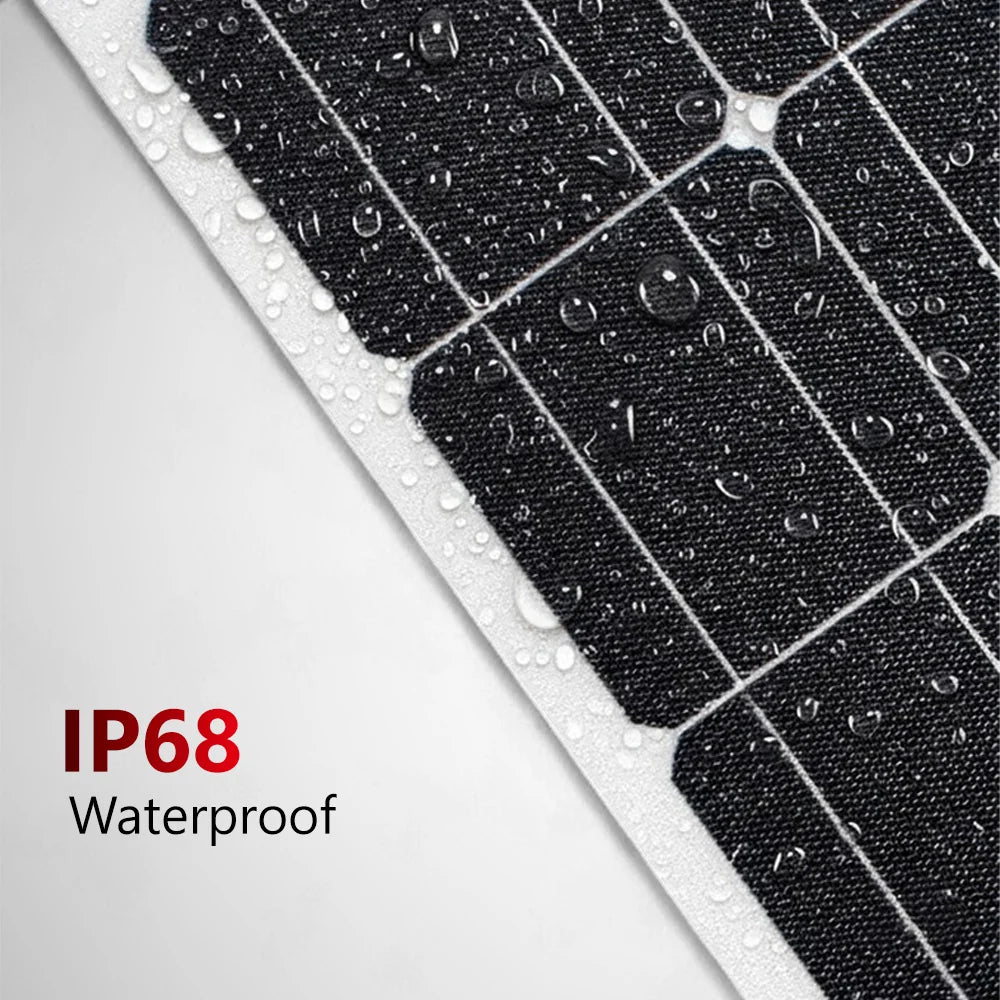

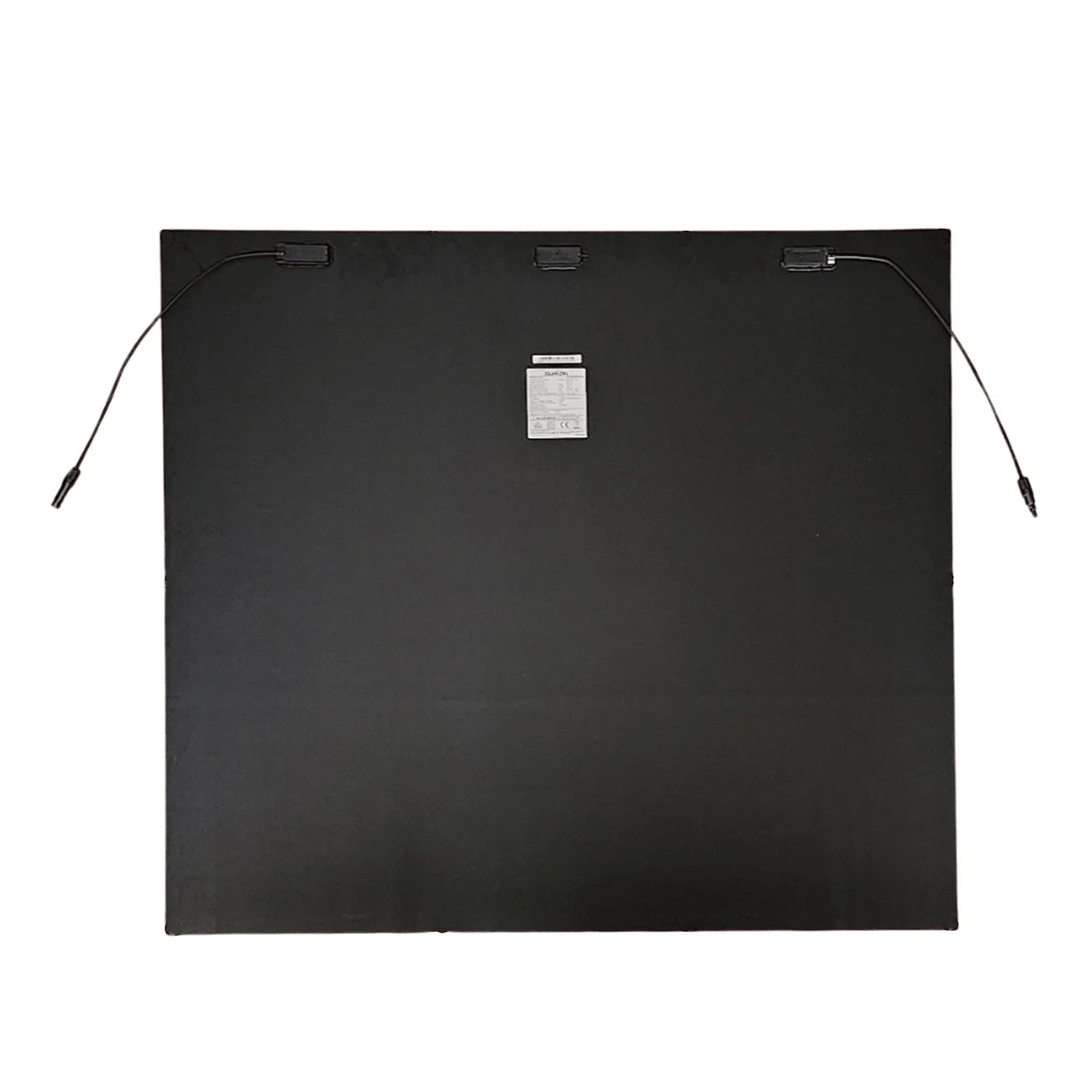

| Junction box | IP 68 rated (each j-box has one by-pass diode) | |||
| Output Cables | Photovoltaic technology cable 4.0 mm2, (+)150 / (-)450 mm | |||
| Connector | MC4 compatible | |||

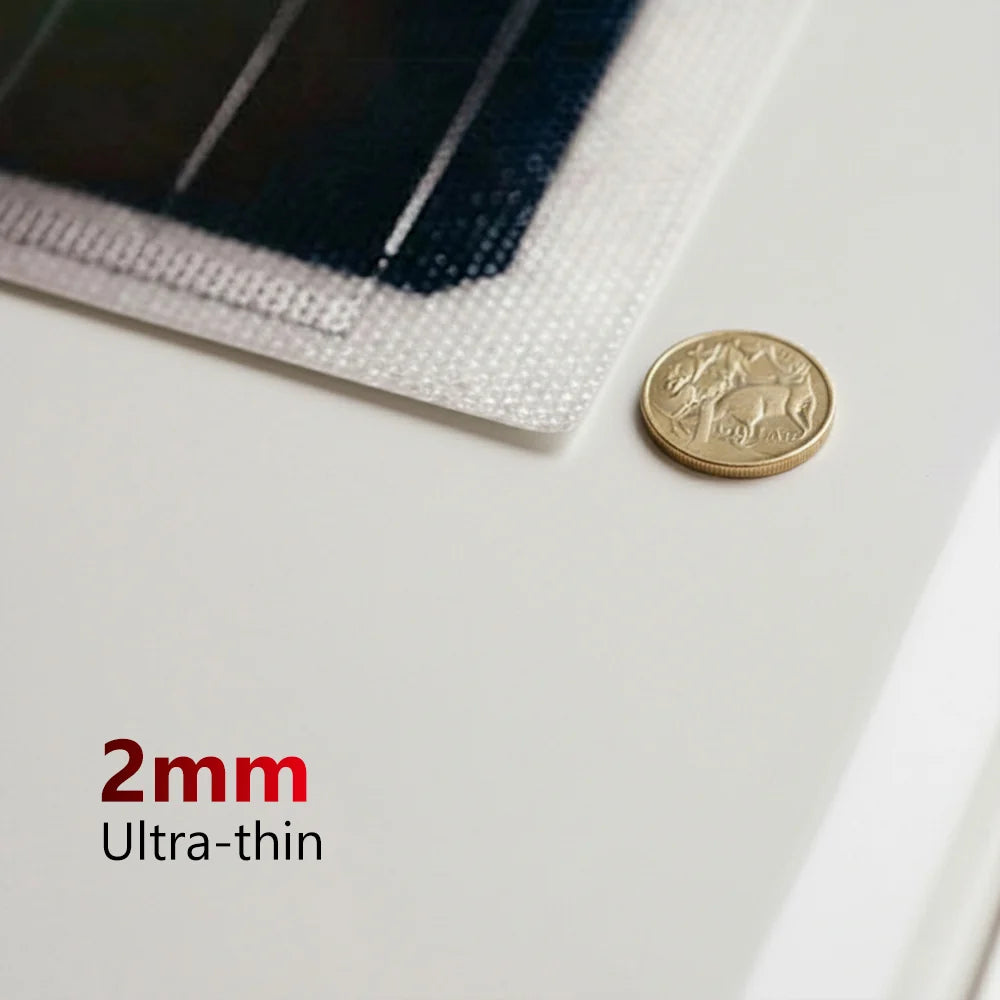

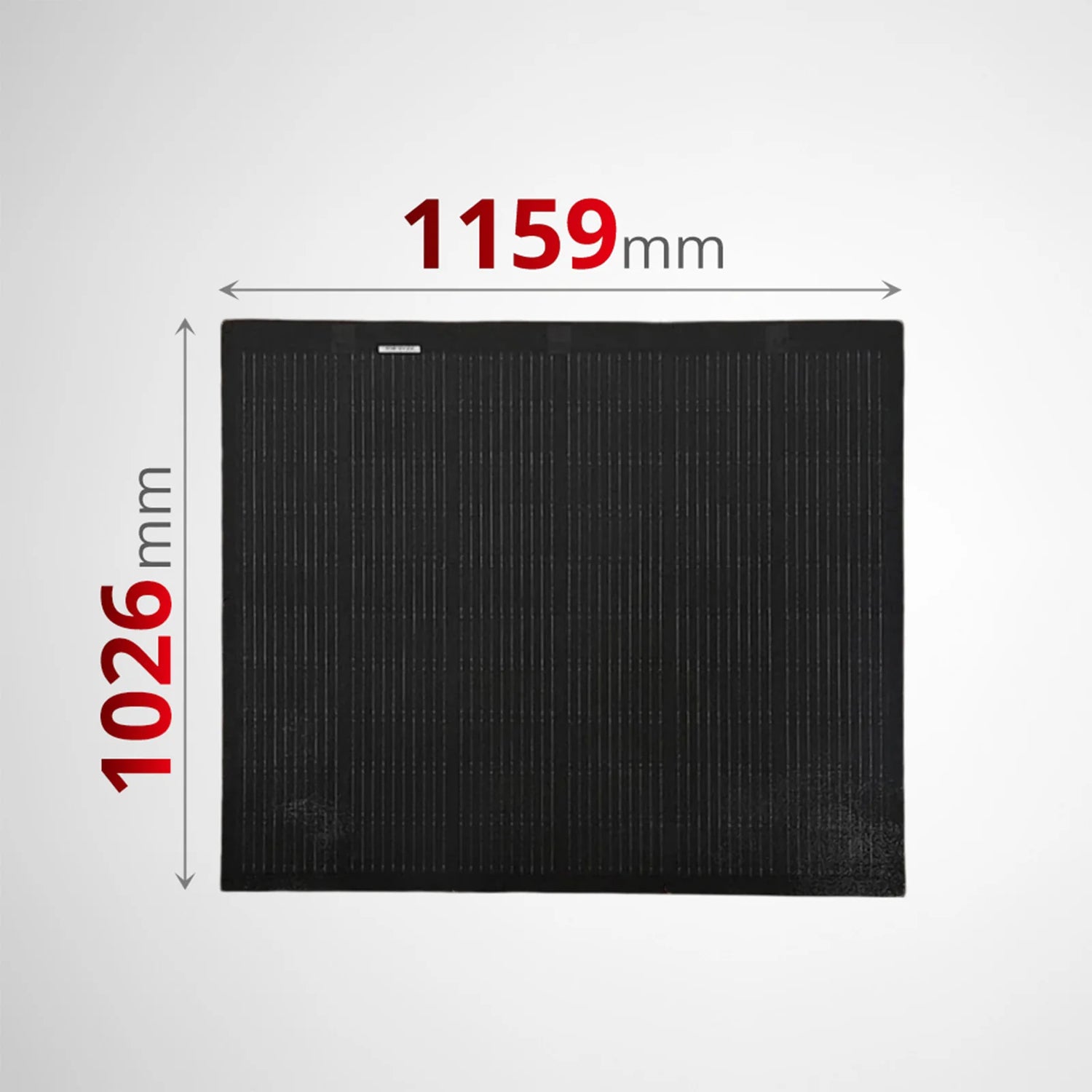

| Dimensions (L x W x H) | 1159 x 1026 x 2mm | |||
| Dimensions Incl JB (L x W x H) | 1159 x 1026 x 22mm | |||
| SKU: | eASMF200J-6X10DB-Se-1 |
| Model #: | eASMF200J-6X10DB-Se-1 |
| MPN: | eASMF200J-6X10DB-Se-1 |
| HS code: | 854143 |
| Package weight: | 3.9 kg |
| Package length: | 1.35 m |
| Package width: | 1 m |
| Package height: | 0.01 m |
