Award RV Superstore | SKU: 3244

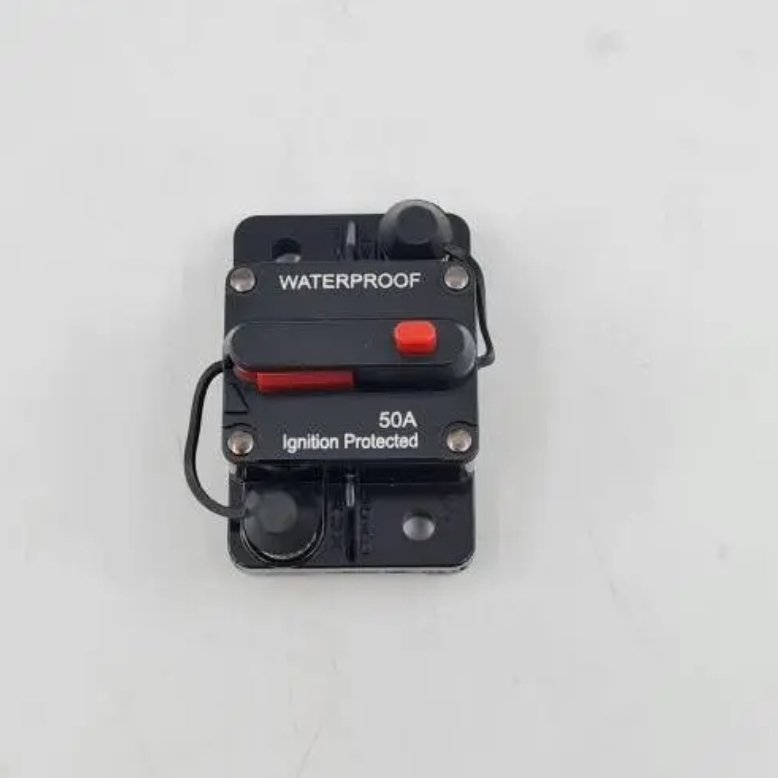

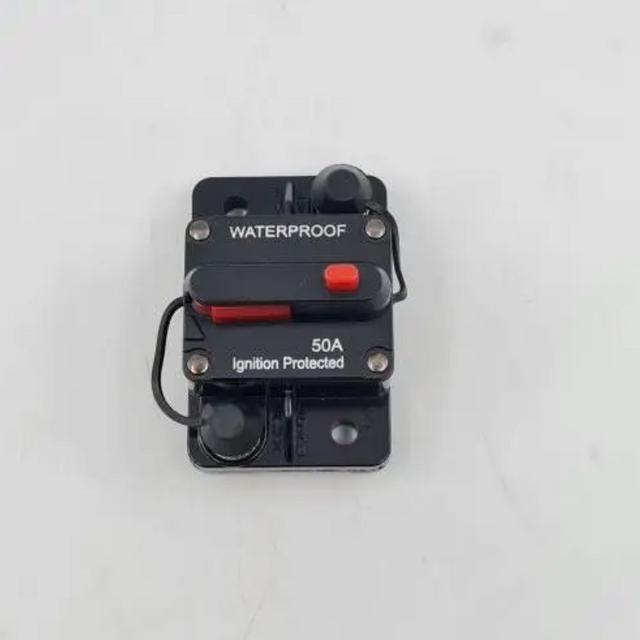

50A DC Circuit Breaker Fuse Reset 12-24V

Name: 50A DC Circuit Breaker Fuse Reset 12-24V
Brand: Award RV Superstore
SKU: 3244
Price: 44.95 AUD
Availability: InStock

$44.95

Tax included Shipping calculated at checkout.

Popular right now
Lots of people have looked at this recently

Care information

Every order is carefully hand-packed and inspected to ensure it arrives safe, secure, and in perfect condition.

Delivery and Shipping

We ship Australia-wide using trusted carriers including Australia Post and Direct Freight Express.

Fast Dispatch: Orders are typically processed within 1–2 business days.

Tracking Included: All parcels come with tracking for peace of mind.

Reliable Service: We choose carriers based on speed, reliability, and coverage.

Delivery Options: Standard and express options available at checkout.

For more details or specific delivery questions, feel free to contact our team.

Description

50A DC Circuit Breaker Fuse Reset 12-24V

Reliable 50A DC Circuit Breaker Fuse: Protection for High-Current Circuits

The 50A DC Circuit Breaker Fuse is your go-to solution for safeguarding high-current circuits in various applications. With a 12-24V reset range, this high-current circuit breaker ensures swift power protection using bimetal structures, swiftly responding to circuit overloads.

Versatile Application

This circuit breaker finds wide application in specialized vehicles, off-road vehicle winches, as well as in electrical controls for yachts and ships. Its surface mount, inclusive of protective stud insulators, offers easy and safe installation.

Specifications:

Rated Current: 50 AMP
Interrupt Rating: 3KA@48VDC
Housing Material: Thermal Plastic UL rated 94V0
IP Rating: IP67 (Splash and dustproof)
Operating Temperature: -32øC to 82øC (-25øF to 180øF)
Storage Temperature: -34øC to 149øC (-30øF to 300øF)
Stud Size: M6 and 1/4"-28 threads per inch

Compliance and Testing

Compliant with standards such as SAE J1625, SAE J1171, UL1500 Ignition Protect, this circuit breaker has undergone a series of rigorous tests. These include overload trip tests, voltage drop tests, current limitation tests, and endurance tests in various environmental and extreme conditions.

Reliable Protection

The 50A DC Circuit Breaker Fuse is built to withstand environmental extremes and transient current cycles, ensuring a durable and reliable performance under challenging conditions. Its interrupt capacity, endurance, and resilience make it a crucial component for securing high-current circuits in diverse applications.
