Elevating Tank Level Monitoring for Precision and Control

Unlock unparalleled precision in tank level monitoring with the GX Tank 140, a sophisticated accessory seamlessly compatible with our GX system monitoring products, with the Cerbo GX standing as the flagship model.

Local and Remote Monitoring: Experience the convenience of monitoring tank levels locally through our intuitive system interface, featuring a user-friendly screenshot display. Additionally, stay connected from anywhere with remote access through our VRM Portal, ensuring real-time insights at your fingertips.

Versatile Compatibility: Designed for versatility, the GX Tank 140 accommodates both current senders (4 to 20 mA) and voltage senders (0 to 10 V). The USB connection to the GX Device not only ensures a hassle-free integration process but also serves as the power source, eliminating the need for additional power wires.

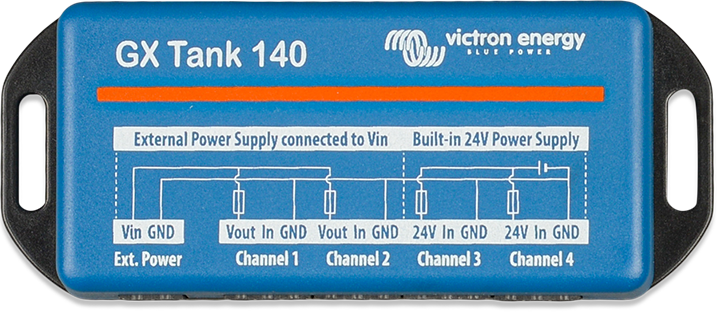

Simplified Wiring: We understand the importance of simplicity in installation. Two of the four inputs provide a 24 V power supply to energize the sender, while the other two channels require an external power supply. The inclusion of a power in terminal, along with fused outputs, streamlines the wiring process.

Configurable Limits: Tailor your tank monitoring to specific needs with configurable upper and lower limits. This flexibility enables seamless integration with senders providing only a partial scale, such as 0 to 5 V.

Stability through Averaged Damping: Ensure stable and accurate readings by utilizing the configurable averaging filter. With damping options ranging from 1 to 60 seconds, the GX Tank 140 effectively mitigates the impact of fluid movement, delivering reliable results.

Fault Detection for Reliability: Rest easy knowing that the GX Tank 140 is equipped with advanced fault detection. In the event of faulty sensors or wiring issues, an alarm promptly notifies you, allowing for quick resolution and maintaining optimal performance.

Marine-Ready Integration: For marine applications, the GX Device seamlessly transmits tank levels on the NMEA 2000 network. This feature enables easy integration with other displays, such as MFDs, providing comprehensive monitoring capabilities tailored to maritime needs.

Experience a new level of precision, control, and reliability with the GX Tank 140 – where cutting-edge technology meets seamless functionality.
