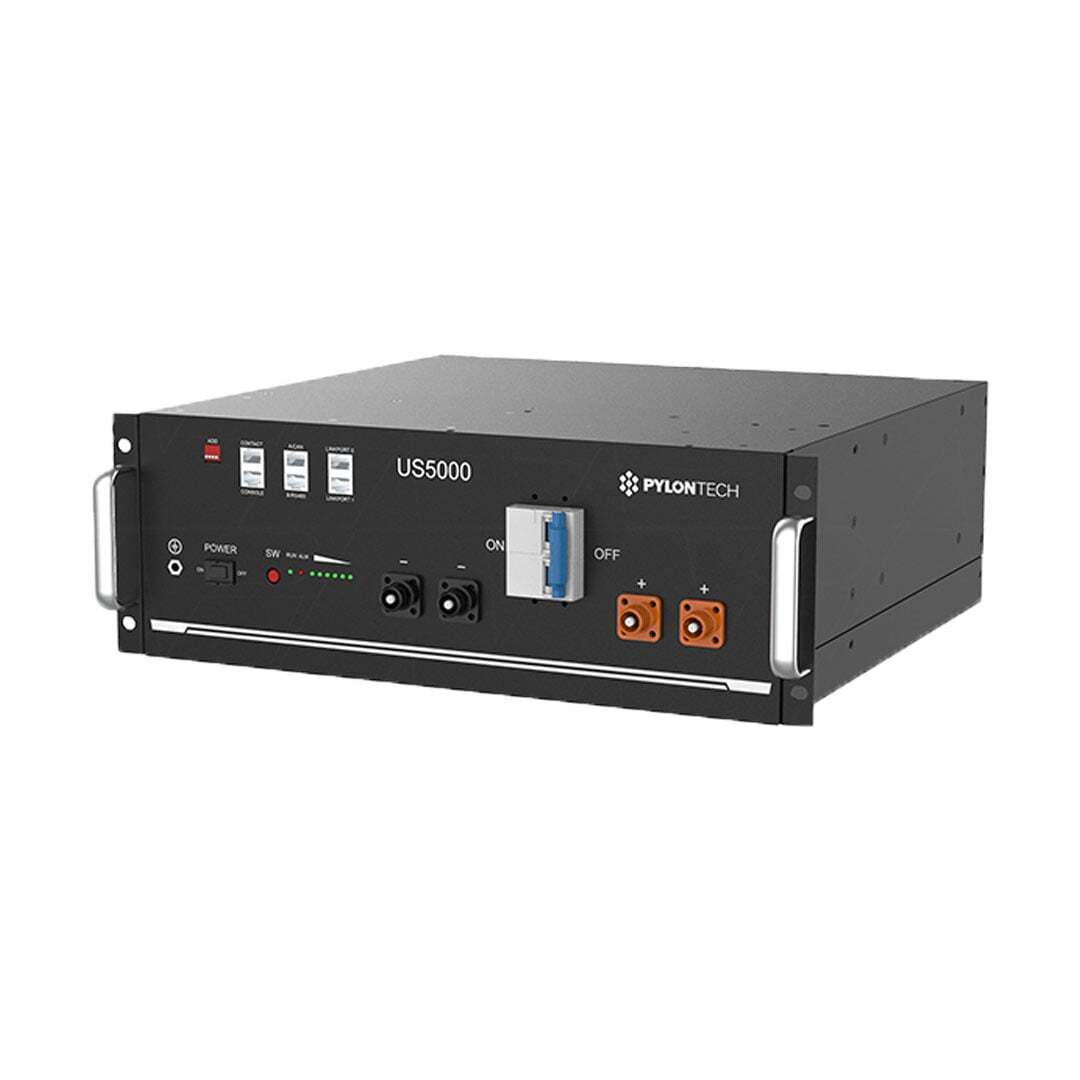

Pylontech US5000-B 48V 4.8kWh 100Ah Rack Mounted LiFePO4 Battery

Pylontech US5000-B 48V 100Ah Rack Mounted LiFePO4 Battery Module

US5000-B is the latest and highest capacity version HESS battery system designed by Pylontech. It’s long life characteristics, highest energy and power density in the industry, fashionable design, easiness of installation and expansion, all reflect the real requirements of end users and the strong technical capability of Pylontech.

Key Features

• This compact and modular battery promises more than 6000 cycles with 90% DoD
• The design fits in a battery rack or can be upgraded with custom “feet”
• Deliver up to 9.5KW with single module (for 15 seconds)
• Modular design gives the end customers the power of choice of capacity (up to 16 modules)
• Safest Lithium battery chemistry (Iron Phosphate)
• Compatible with most of the available Hybrid inverters
• Simple buckle fixing minimize the installation time and cost
• Does not require a separate Battery Management Unit
• Safety Cert.TüV CE UN38.3

Pylontech ensure the highest quality by designing & manufacturing their own Lithium Phosphate (LiFePO4) batteries and BMS boards.

Additional Details:

• 4RU size (161mm tall)
• Cycle life: >6000 cycles @ 25°C with 95% DoD for daily cyclic applications
• Usable capacity of 4.56kWh @ 48 vDC
• Working Temperature Range -10°C to 55°C, (Charging 0~55°C: Discharging -10~55°C)
• Compact and fashionable 19″ rack design to suit bracket, rack or cabinet installations
• Modular design gives the you the power to design systems from 4.8kWh to a commercial sized 1.704MWh
• Compatible with many available Hybrid inverters
• Backwards Compatible with existing US series products
• Pre-charge function to protect ESS from surge currents
• Safety Cert. CE, UL1973, UKCA, UN38.3, IEC62619, IEC63056
• Communication Protocols: CAN, RS485
• 15+ Year Design Life
• 10 Year Warranty

Safety and Quality

• Lithium Iron Phosphate (LFP): Pioneering safety and quality with over 360,000 installations worldwide. We prioritize long-term performance stability and lifespan, from individual cells to comprehensive battery system integration.

Flexible and Easy Installation

• DIY-Friendly: Installation methods are designed to be flexible and straightforward.
• Scalable Capacity: Expand your system's capacity without limitations.
• Wide Operating Range: Works in temperatures from -10℃ to 50℃ and at altitudes up to 4000 meters.

Extraordinary Powerful Performance

• High Current Capability: Continuous charge/discharge at (0.8C) for robust power supply.
• Multi-Level Current Protection: Four tiers of protection for current management.
• Enhanced Power: Delivers 50% more power in critical temperature conditions for superior performance.

Note that a Pylontech cable kit will be required to connect a single battery or battery bank to a inverter charger.
