Cruisemaster DO45 Plus coupling (No Handbrake)
Description
Description

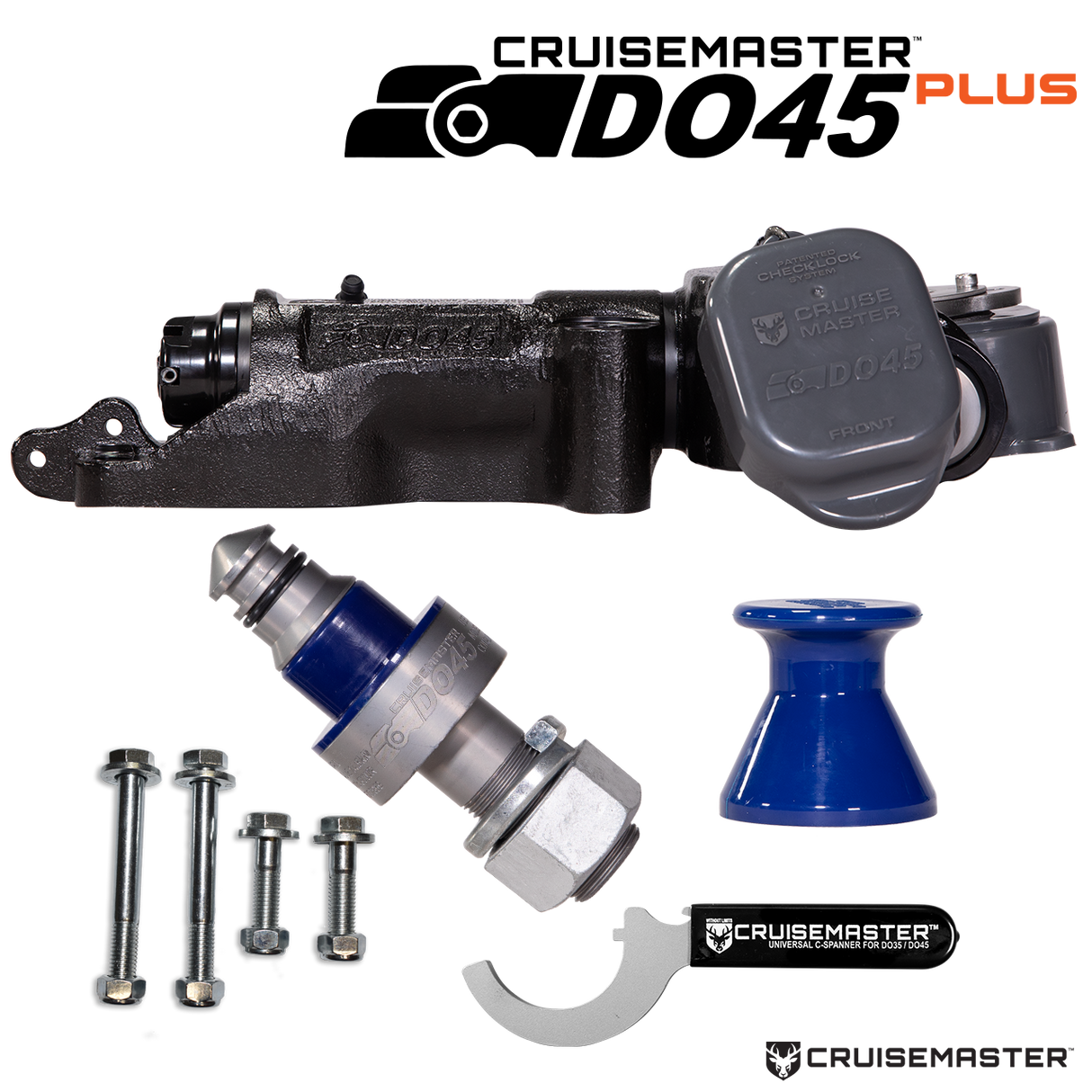

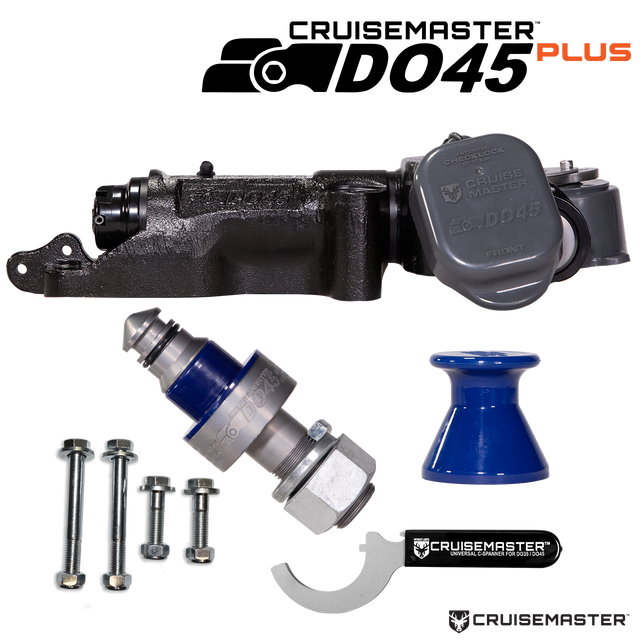

Item Includes
- DO45 Plus (No Handbrake)
- Tow Pin 1 1/4" Shaft
- Tow Pin Cover
- Universal C-Spanner
- Fitment Bolts
- User Guide
Tame the Beast with the DO45 Plus!
PLUS SERIES EXCLUSIVE FEATURES
- Patented “Checklock” Gen.2 Dust Cap & Bumper for an easy, secure seal
- Improved Bumper now includes reflective reversing strip for easy alignment
- Rear support webbing allows for mounting upside down on the underside of the drawbar
FEATURES
- D-Value & V-Value ADR Compliant
- 2 Stage ADR compliant locking mechanism
- Low profile Bumper & Cap for impressive clearance
- High articulation for improved handling off-road and on unmaintained roads
- Available with or without handbrake
- Suitable for use with Weight Distribution System’s (where applicable)
- Forged Yoke and Rear Nut for added strength
- One piece light weight Cast Housing
- Improved towing safety
- Combination of zn-ni and e-coat for superior corrosion protection
- Greaseable Bushes for easy maintenance and noise free towing
- No tow ball height restrictions
-
ARTICULATION: 360 degrees axial, minimum 70 degrees other axes. LOCKING: Fully ADR 62/02 compliant including automatic secondary lock BOLT PATTERN: 4 bolts at 185mm x 76mm (Front) x 54mm (Rear) RATING: 4.5 Tonne ACTION: Drop-On MAINTENANCE: Fully Greasable 1 7/8” socket required for installation - For instructions on installation, maintenance and use refer the DO45Plus User Guide.
*Please note while the DO45Plus’s Zn-Ni with E-Coat provides superior corrosion protection it may fade with extended exposure to UV. This does not affect the operation of the DO45Plus. To best maintain the finish of the product, we recommend covering the DO45Plus coupling when not in use if stored outside and exposed to direct UV.
DO45 Version 1 & DO45Plus accessories and fittings are not interchangable
R.A.T Run Tested and Proven - * Please note product supplied and product shown may have minor cosmetic discrepancies
