BMPRO  |  SKU: PXSHUNT500

BMPRO PXshunt500

Regular price $295.95
Tax included Shipping calculated at checkout.

BMPRO PXshunt500 is backordered and will ship as soon as it is back in stock.


Popular right now
Lots of people have looked at this recently

Care information

Every order is carefully hand-packed and inspected to ensure it arrives safe, secure, and in perfect condition.

Delivery and Shipping

We ship Australia-wide using trusted carriers including Australia Post and Direct Freight Express.

Fast Dispatch: Orders are typically processed within 1–2 business days.

Tracking Included: All parcels come with tracking for peace of mind.

Reliable Service: We choose carriers based on speed, reliability, and coverage.

Delivery Options:
Standard and express options available at checkout.

For more details or specific delivery questions, feel free to contact our team.

Description

BMPRO PXshunt500

The PXShunt500 provides wired battery monitoring for high current BMPRO power management systems.

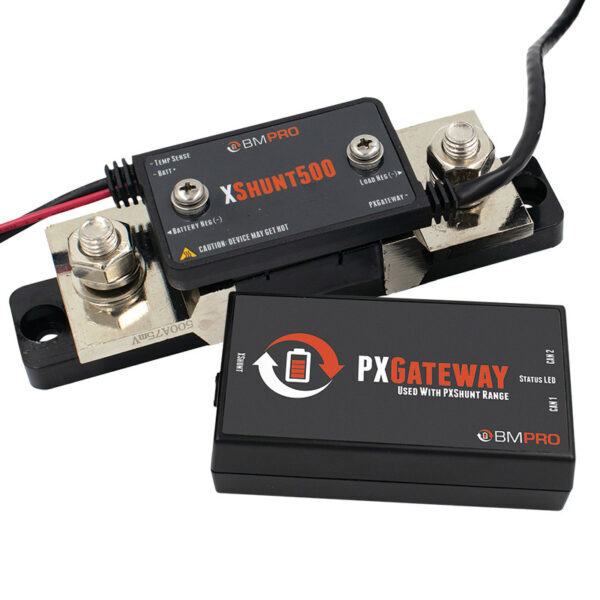

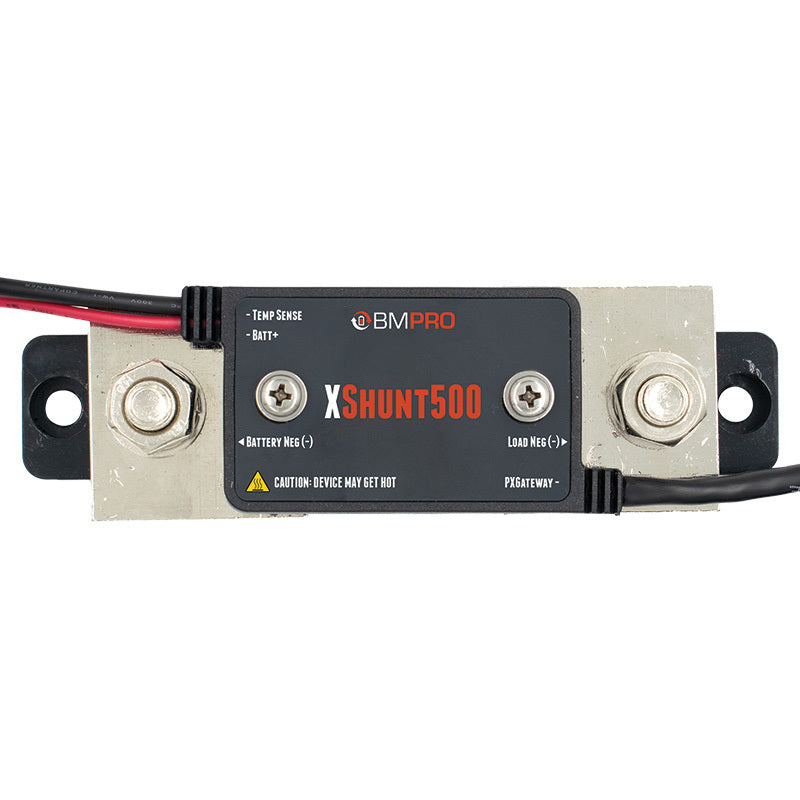

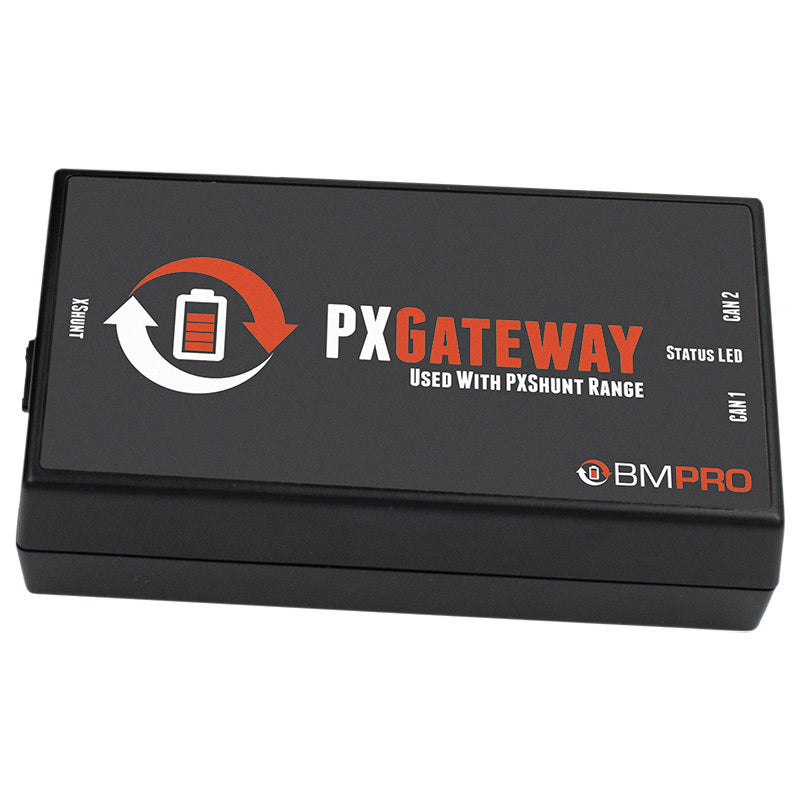

Made up of two components, the XShunt500 and the PXGateway, adding the PXShunt500 to a BMPRO
power management system allows high current loads to be directly connected to the battery while maintaining accurate State of Charge and Time Remaining measurements.

The PXShunt500 also provides your BatteryPlus35, ASPero and J35 with additional information on battery usage so your displays such as the Odyssey, Trek, JControl and JHub are always up-to-date on battery Time Remaining and State of Charge.

The PXShunt500 communicates via a CAN bus cable, is designed for 12V batteries up to 1200AH in capacity, features easy to read LED status indicators and is rated for 500A of continuous current.

KEY FEATURES

  • High current/external charge  monitoring
  • Supports 12V batteries up to 1200Ah
  • Rated for 500A of continuous current
  • Easy to read LED status indicators
  • Simple Installation
  • Compatible with Lead Acid and LiFePO4 deep cycle batteries

Battery properties monitored:

  • Voltage
  • Current (charging/discharging)
  • Energy usage (Ah)
  • Temperature

Voltage Range - 8V to 16V

Voltage Resolution- <20mV

Current Resolution- <200mA

Current Range- 500A continuous

Overload Protection- ± 800A (100ms without damage)

Temperature Range- -10°C to 50°C (battery terminal)

Temperature Resolution- 3°C

Capacity Range- 1200Ah

Input Voltage- 8V to 16V

Quiescent Current Drain (average)- XShunt500: <10mA
PXGateway: <20mA

Operating Temperature- -10°C to 50°C

Humidity Operating- ≤ 90% RH non-condensing

Dimensions (Approx.)- XShunt500: 156 x 46 x 47.5mm
PXGateway: 90 x 52 x 24mm

Weight (Approx.)- XShunt500: 1kg
PXGateway: 150g

IP Rating- XShunt500: IP54
PXGateway: IP30
